1674477 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

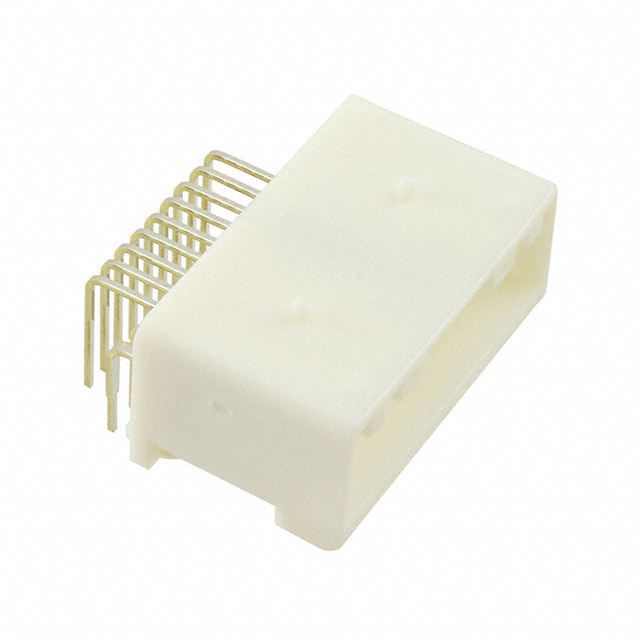

CONN HEADER R/A 20POS 2.2MM
| Part | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Shape | Voltage Rating | Number of Positions | Contact Type | Shrouding | Material Flammability Rating | Termination | Fastening Type | Pitch - Mating | Pitch - Mating | Connector Type | Contact Finish - Post | Features | Applications | Style | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Length - Mating | Contact Length - Mating | Mounting Type | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | 0.606 in | 15.39 mm | 0.157 in | 4 mm | Square | 12 V | 20 | Male Pin | Shrouded - 4 Wall | UL94 HB | Solder | Latch Holder | 0.087 in | 2.2 mm | Header | Tin | Mounting Flange | Automotive | Board to Cable/Wire | -40 °C | 105 ░C | 2 | 0.217 in | 5.5 mm | Through Hole Right Angle | Natural |
