P16OAT11 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON SPDT 8A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Illumination Voltage (Nominal)	Actuator Type	Color - Actuator/Cap	Mounting Type	Current Rating (Amps)	Circuit	Illumination Type, Color	Actuator Marking	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Type
E-Switch P16OAT11HGRNGRN	100000 Cycles	50000 Cycles	125 V	6 VDC	Button Rectangular	Green	Panel Mount Front	6 A 8 A	SPDT	Green LED	No Marking	24 V	16 mm	On-Mom	55 °C	-20 ░C	Quick Connect - 0.110" (2.8mm)	Illuminated Standard

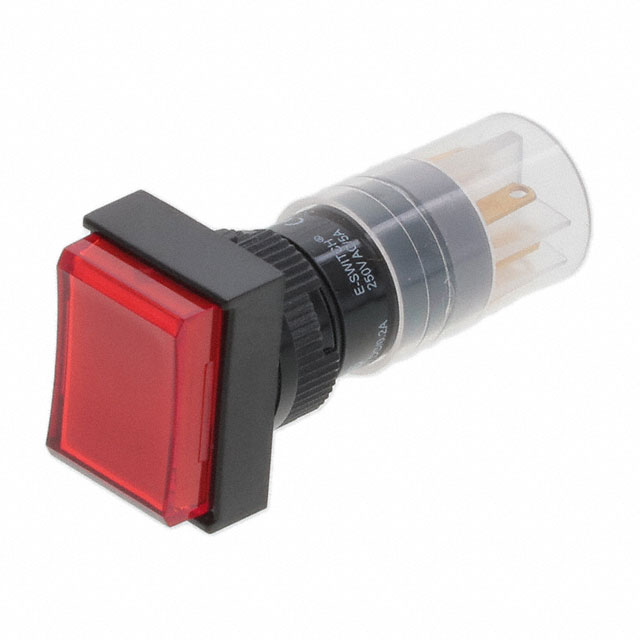

E-Switch P16OAT11KREDRED	100000 Cycles	50000 Cycles	125 V	24 V	Button Rectangular	Red	Panel Mount Front	6 A 8 A	SPDT	LED Red	No Marking	24 V	16 mm	On-Mom	55 °C	-20 ░C	Quick Connect - 0.110" (2.8mm)	Illuminated Standard
E-Switch P16OAT11BYEL	100000 Cycles	50000 Cycles	125 V		Button Rectangular	Yellow	Panel Mount Front	6 A 8 A	SPDT	Incandescent Yellow	No Marking	24 V	16 mm	On-Mom	55 °C	-20 ░C	Quick Connect - 0.110" (2.8mm)	Illuminated Standard

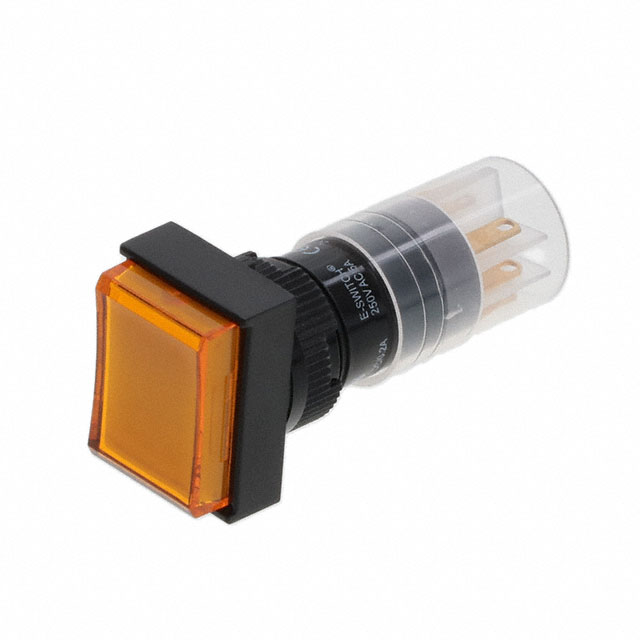

E-Switch P16OAT11KYELYEL	100000 Cycles	50000 Cycles	125 V	24 V	Button Rectangular	Yellow	Panel Mount Front	6 A 8 A	SPDT	LED Yellow	No Marking	24 V	16 mm	On-Mom	55 °C	-20 ░C	Quick Connect - 0.110" (2.8mm)	Illuminated Standard
E-Switch P16OAT11CRED	100000 Cycles	50000 Cycles	125 V	28 VAC/DC	Button Rectangular	Red	Panel Mount Front	6 A 8 A	SPDT	Incandescent Red	No Marking	24 V	16 mm	On-Mom	55 °C	-20 ░C	Quick Connect - 0.110" (2.8mm)	Illuminated Standard
E-Switch P16OAT11CGRN	100000 Cycles	50000 Cycles	125 V	28 VAC/DC	Button Rectangular	Green	Panel Mount Front	6 A 8 A	SPDT	Green Incandescent	No Marking	24 V	16 mm	On-Mom	55 °C	-20 ░C	Quick Connect - 0.110" (2.8mm)	Illuminated Standard
