315-060 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 60POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Material	Termination	Card Thickness [Max]	Card Thickness [Min]	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Number of Rows [custom]	Number of Positions/Bay/Row	Read Out	Number of Positions	Pitch	Pitch	Mounting Type	Contact Type	Contact Finish	Features
EDAC Inc. 315-060-500-204	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Panel Mount	Semi Bellows	Gold
EDAC Inc. 315-060-520-258	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Panel Mount Through Hole	Semi Bellows	Gold
EDAC Inc. 315-060-555-278	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Board Edge Straddle Mount	Semi Bellows	Gold	Card Extender Card Guides
EDAC Inc. 315-060-521-201	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female				Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Through Hole	Semi Bellows	Gold
EDAC Inc. 315-060-556-204	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Board Edge Straddle Mount	Semi Bellows	Gold	Card Extender

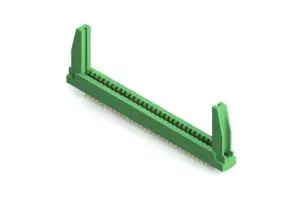

EDAC Inc. 315-060-520-278	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Panel Mount Through Hole	Semi Bellows	Gold
EDAC Inc. 315-060-555-208	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Board Edge Straddle Mount	Semi Bellows	Gold	Card Extender
EDAC Inc. 315-060-500-202	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Panel Mount	Semi Bellows	Gold

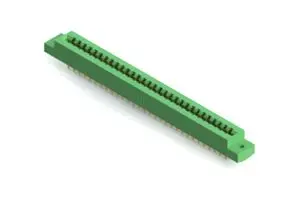

EDAC Inc. 315-060-520-202	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Panel Mount Through Hole	Semi Bellows	Gold
EDAC Inc. 315-060-520-201	2	Polyester Thermoplastic	-40 C	105 ░C	0.25 Ám	10 Áin	Green	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female				Non Specified - Dual Edge	2	30	Dual	60	3.96 mm	0.156 in	Through Hole	Semi Bellows	Gold
