D2450 Series

Catalog

SSR RELAY SPST-NO 50A 24-280V

Part	Load Current	Output Type	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Termination Style
Sensata-Crydom D2450-10	50 A	AC	Chassis Mount	24 V	280 V	3 V	32 VDC	Hockey Puck	80 °C	-40 C	CE CSA TUV UL	Screw Terminal

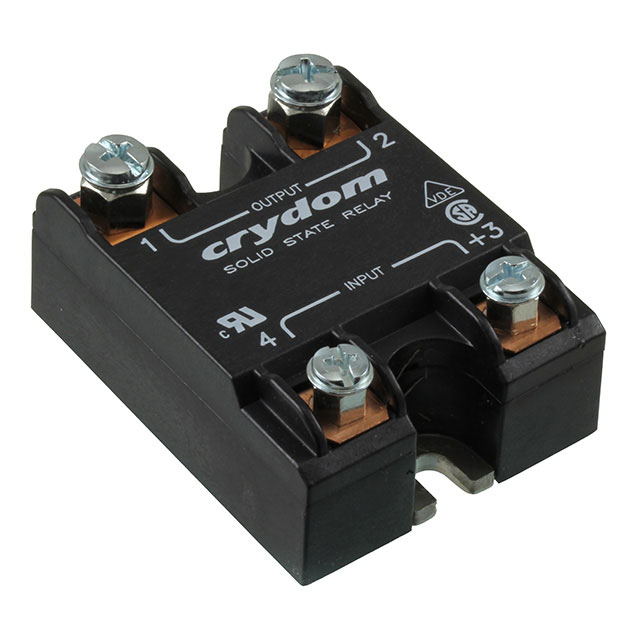

Sensata-Crydom D2450K	50 A	AC Zero Cross	Chassis Mount	24 V	280 V	3 V	32 VDC	Hockey Puck	80 °C	-40 C	CE CSA TUV UL	Screw Terminal
Sensata-Crydom D2450KS-10	50 A	AC	Chassis Mount	24 V	280 V	3 V	32 VDC	Hockey Puck	80 °C	-40 C	CE CSA TUV UL	Screw Terminal
Sensata-Crydom D2450H-B	50 A	AC Zero Cross	Chassis Mount	24 V	280 V	3 V	32 VDC	Hockey Puck	80 °C	-40 C	CE CSA TUV UL	Screw Terminal
Sensata-Crydom D2450PG	50 A	AC Zero Cross	Chassis Mount	24 V	280 V	3 V	32 VDC	Hockey Puck	80 °C	-40 C	CE CSA TUV UL	Screw Terminal
