SSI-LXR4815 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED PANEL INDICATOR GREEN 2.2V

Part	Panel Cutout Shape	Termination Style	Termination Style	Termination Style	Millicandela Rating	Wavelength - Peak	Voltage	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency	Current	Type	Lens Size	Lens Size	Viewing Angle	Lamp Color	Lens Style	Current
Lumex Opto/Components Inc. SSI-LXR4815GD-600	Round	Wire Leads	24 in	609.6 mm	30 mcd	565 nm	2.2 V	Green	8.13 mm	0.32 "	Diffused	20 mA	LED	5 mm	T-1 3/4	60 °	Green	Round with Domed Top

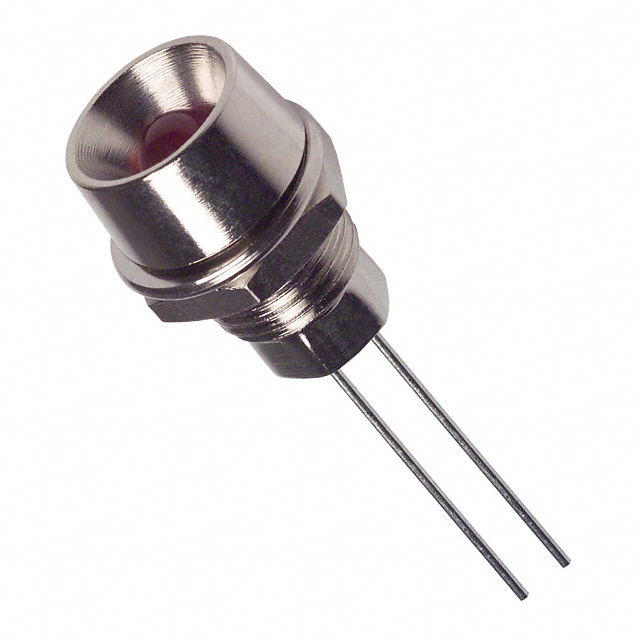

Lumex Opto/Components Inc. SSI-LXR4815SRD	Round				300 mcd	660 nm	1.8 V	Red	8.13 mm	0.32 "	Diffused	30 mA	LED	5 mm	T-1 3/4	60 °	Red	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXR4815ID-WR
Lumex Opto/Components Inc. SSI-LXR4815HGW-150	Round				5 mcd 8 mcd	565 nm 700 nm	2 V 2.2 V	White	8.13 mm	0.32 "	Diffused		LED	5 mm	T-1 3/4	60 °	Green Red	Round with Domed Top	25mA Green 25mA Red
Lumex Opto/Components Inc. SSI-LXR4815SRD-150	Round				300 mcd	660 nm	1.8 V	Red	8.2 mm	0.32 "	Diffused	30 mA	LED	5 mm	T-1 3/4	60 °	Red	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXR4815SYD150B	Round				200 mcd	590 nm	2.1 V	Yellow	8.13 mm	0.32 "	Diffused	20 mA	LED	5 mm	T-1 3/4	60 °	Yellow	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXR4815USBD150	Round				250 mcd	470 nm	3.5 V	Blue	8.13 mm	0.32 "	Diffused	20 mA	LED	5 mm	T-1 3/4	60 °	Blue	Round with Domed Top

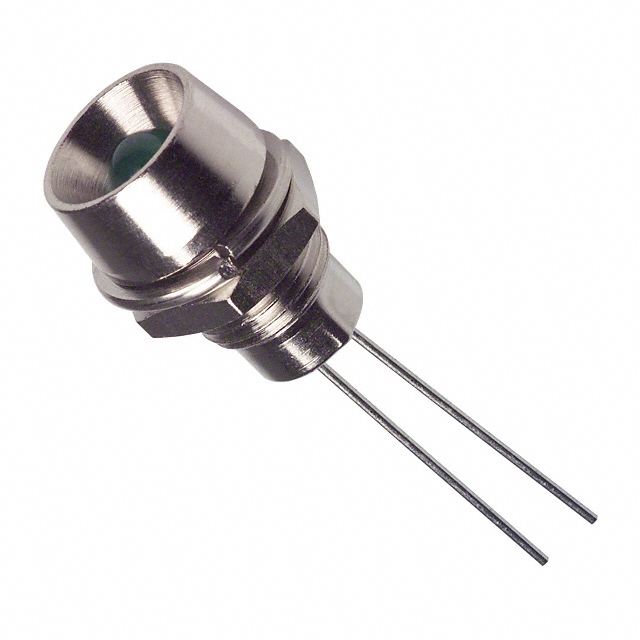

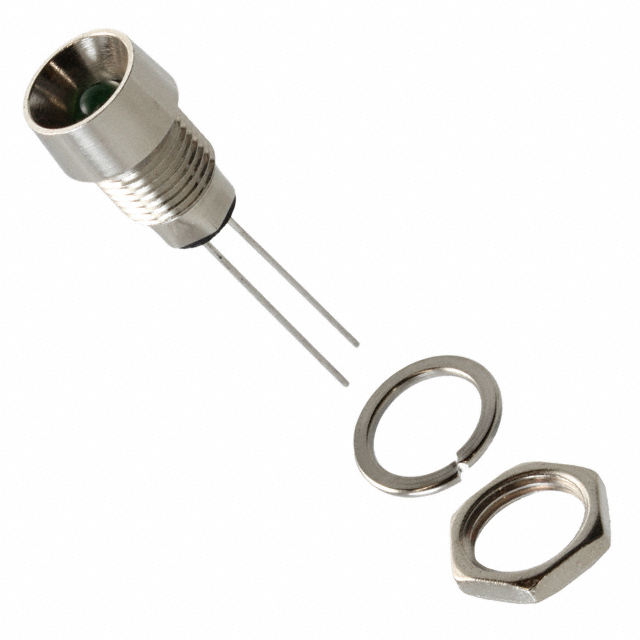

Lumex Opto/Components Inc. SSI-LXR4815GD	Round				30 mcd	565 nm	2.2 V	Green	8.13 mm	0.32 "	Diffused	25 mA	LED	5 mm	T-1 3/4	60 °	Green	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXR4815-Q21742	Round				14000 mcd	525 nm	3.7 V	Colorless	8.13 mm	0.32 "	Clear	20 mA	LED	5 mm	T-1 3/4	20 °	Green	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXR4815GD-150	Round				30 mcd	565 nm	2.2 V	Green	8.13 mm	0.32 "	Diffused	25 mA	LED	5 mm	T-1 3/4	60 °	Green	Round with Domed Top
