7200A Series
Manufacturer: Belden Inc.
Beta
⌘K

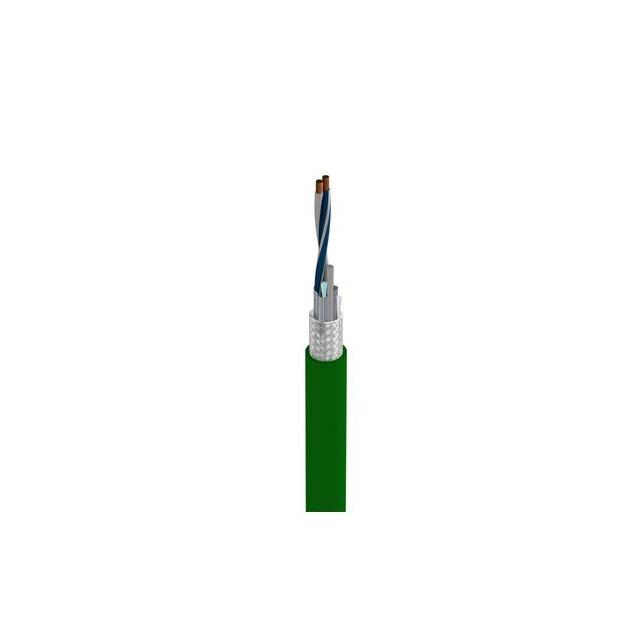

CABLE 2CON 24AWG GREEN SHLD
| Part | Shield Material | Shield Coverage | Number of Conductors | Voltage | Usage | Wire Gauge | Conductor Material | Cable Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Shield Type | Length | Length | Features | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 2 | 300 VDC | Industrial | 24 AWG | Copper Bare | Multi-Conductor | Green | 1.143 mm | 0.045 in | Braid Foil | 152.4 m | 500 ft | Drain Wire Oil Resistant | Foam Polyethylene (FPE) | 6.63 mm | 0.261 in | -20 ░C | 60 °C | 41 | 40 | Poly-Vinyl Chloride (PVC) |
