ACPL-M483 Series

Catalog

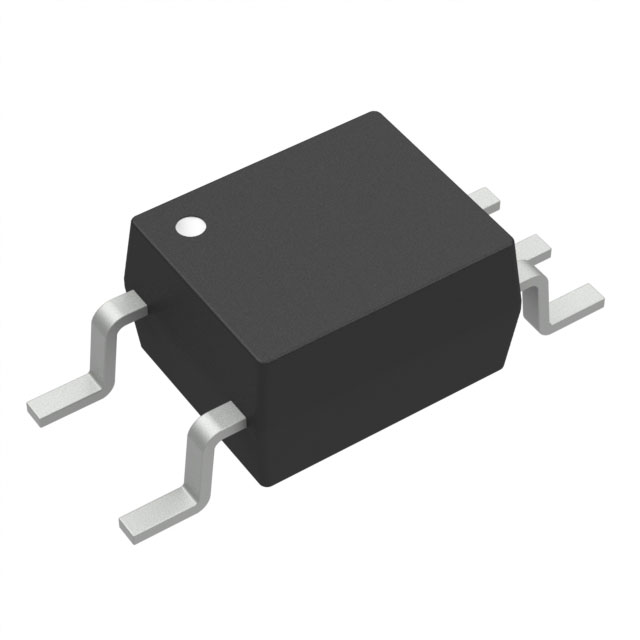

OPTOISO 3.75KV PUSH PULL 5SO

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Typ)	Number of Channels [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Isolation	Current - DC Forward (If) (Max) [Max]	Mounting Type	Common Mode Transient Immunity (Min) [Min]	Package / Case	Package / Case	Supplier Device Package	Current - Output / Channel	Output Type	Inputs - Side 1/Side 2 [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Type
Broadcom Limited ACPL-M483-000E	-40 C	105 ░C	1.5 V	1	6 ns	6 ns	120 ns	120 ns	3750 Vrms	10 mA	Surface Mount	30 kV/µs	6-SOIC	0.173 " 4.4 mm Width 5 Leads	5-SO	50 mA	Push-Pull Totem Pole	1	30 VDC	4.5 V	DC
Broadcom Limited ACPL-M483-560E	-40 C	105 ░C	1.5 V	1	6 ns	6 ns	120 ns	120 ns	3750 Vrms	10 mA	Surface Mount	30 kV/µs	6-SOIC	0.173 " 4.4 mm Width 5 Leads	5-SO	50 mA	Push-Pull Totem Pole	1	30 VDC	4.5 V	DC
Broadcom Limited ACPL-M483-500E	-40 C	105 ░C	1.5 V	1	6 ns	6 ns	120 ns	120 ns	3750 Vrms	10 mA	Surface Mount	30 kV/µs	6-SOIC	0.173 " 4.4 mm Width 5 Leads	5-SO	50 mA	Push-Pull Totem Pole	1	30 VDC	4.5 V	DC
Broadcom Limited ACPL-M483-060E	-40 C	105 ░C	1.5 V	1	6 ns	6 ns	120 ns	120 ns	3750 Vrms	10 mA	Surface Mount	30 kV/µs	6-SOIC	0.173 " 4.4 mm Width 5 Leads	5-SO	50 mA	Push-Pull Totem Pole	1	30 VDC	4.5 V	DC
