892-116 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 116POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Contact Material	Card Type	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Contact Type	Contact Finish	Termination	Number of Positions	Gender	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Color	Read Out	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 892-116-523-208	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Solder	116	Female	2	0.25 Ám	10 Áin	Through Hole	Black	Dual
EDAC Inc. 892-116-523-203	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Solder	116	Female	2	0.25 Ám	10 Áin	Through Hole	Black	Dual	0.116 "	2.95 mm

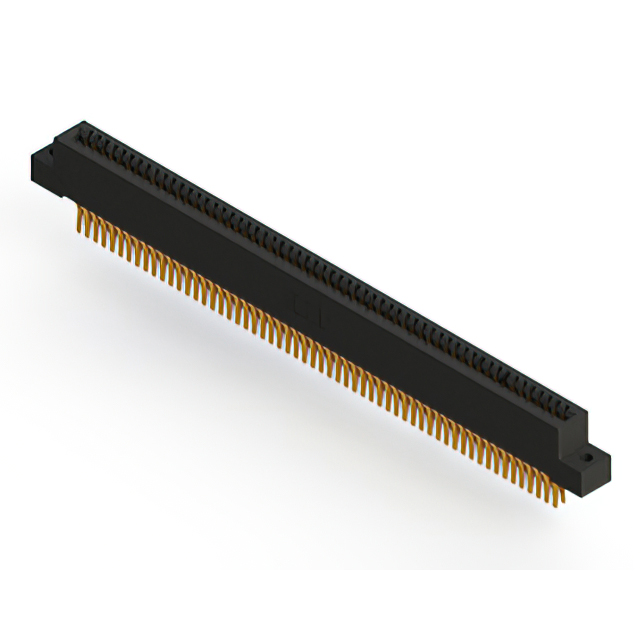

EDAC Inc. 892-116-560-202	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Solder	116	Female	2	0.25 Ám	10 Áin	Board Edge Straddle Mount	Black	Dual	0.128 "	3.25 mm	Card Extender
EDAC Inc. 892-116-540-207	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Wire Wrap	116	Female	2	0.25 Ám	10 Áin	Through Hole	Black	Dual
EDAC Inc. 892-116-521-203	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Solder	116	Female	2	0.25 Ám	10 Áin	Through Hole	Black	Dual	0.116 "	2.95 mm

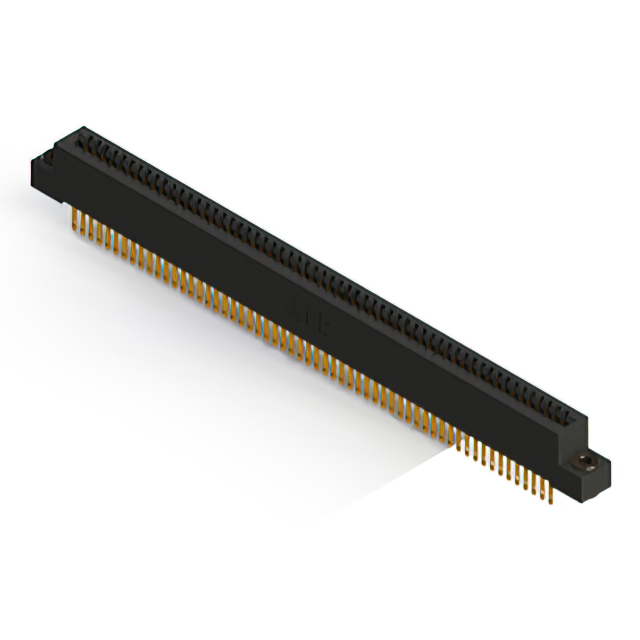

EDAC Inc. 892-116-500-203	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Solder Eyelet(s)	116	Female	2	0.25 Ám	10 Áin	Through Hole	Black	Dual	0.116 "	2.95 mm
EDAC Inc. 892-116-500-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Side Opening Unthreaded	Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Solder Eyelet(s)	116	Female	2	0.25 Ám	10 Áin	Through Hole	Black	Dual	0.128 "	3.25 mm
EDAC Inc. 892-116-520-204	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Solder	116	Female	2	0.25 Ám	10 Áin	Through Hole	Black	Dual	0.156 "	3.96 mm
EDAC Inc. 892-116-521-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Side Opening Unthreaded	Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Solder	116	Female	2	0.25 Ám	10 Áin	Through Hole	Black	Dual	0.128 "	3.25 mm

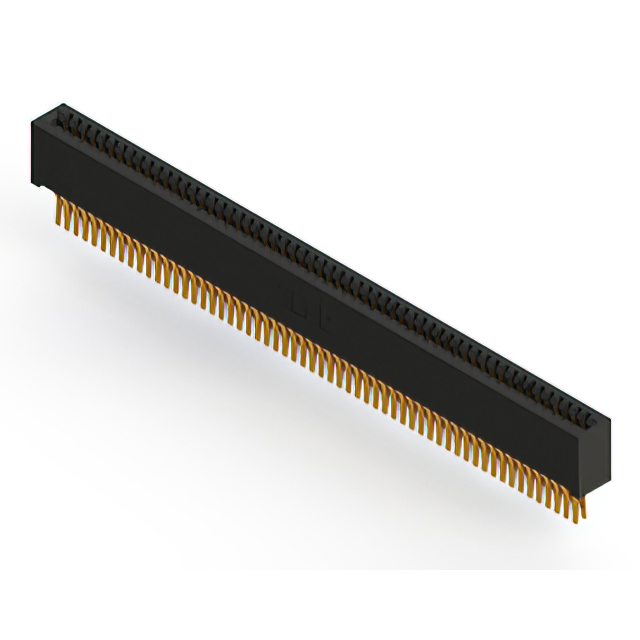

EDAC Inc. 892-116-560-201	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm		Copper Alloy	Non Specified - Dual Edge	58	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Gold	Solder	116	Female	2	0.25 Ám	10 Áin	Board Edge Straddle Mount	Black	Dual			Card Extender
