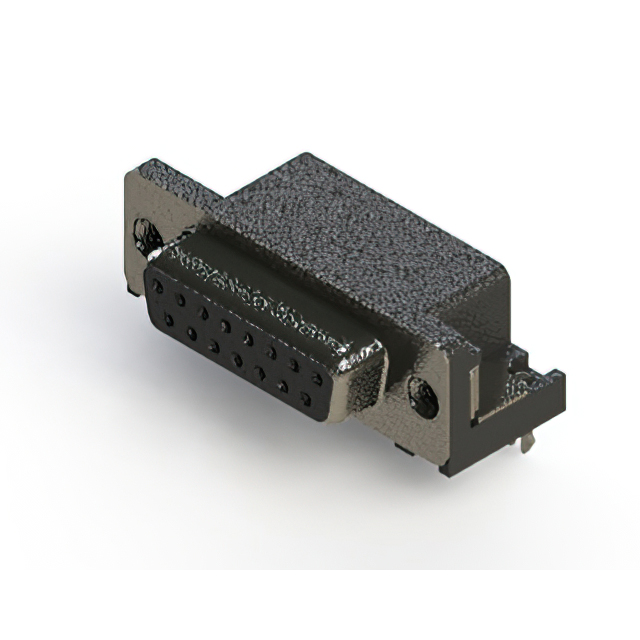

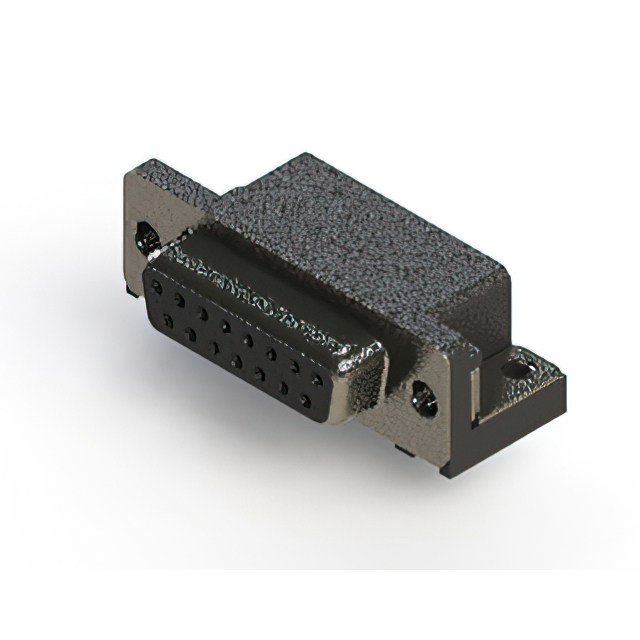

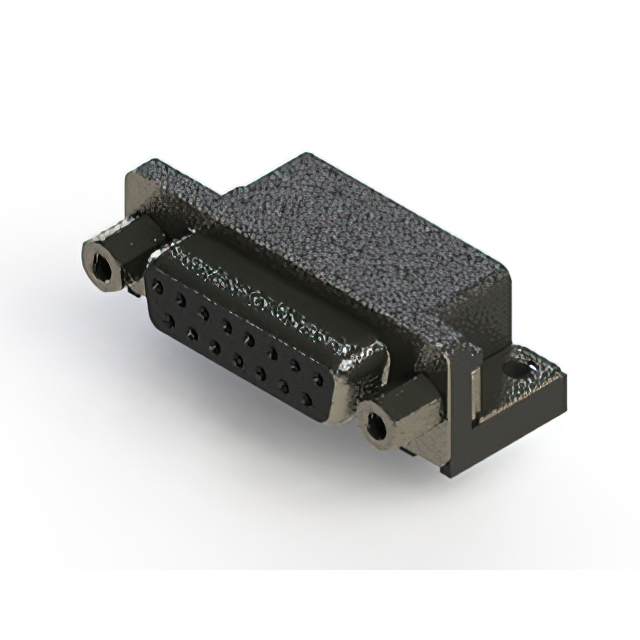

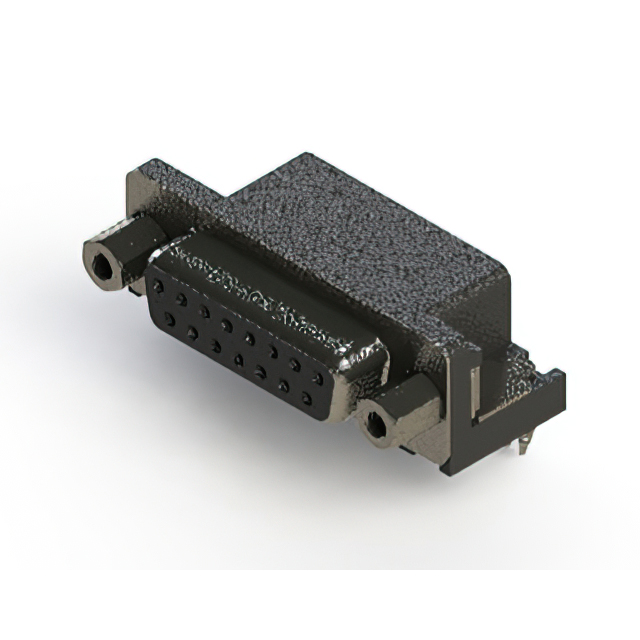

630-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB RIGHT ANGLE CONNECTOR ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Material Flammability Rating | Contact Type | Number of Rows [custom] | Backset Spacing | Backset Spacing | Number of Positions | Termination | Connector Style | Shell Material, Finish | Mounting Type | Connector Type | Contact Finish | Features | Flange Feature | Contact Finish Thickness | Current Rating (Amps) | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Board Edge Right Angle Through Hole | Receptacle Female Sockets | Gold | Mounting Brackets Shielded | Housing/Shell (M3) | Flash | 3 A | 2 | |||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Board Edge Right Angle Through Hole | Receptacle Female Sockets | Gold | Board Lock Mounting Brackets Shielded | 4-40 Mating Side Female Screwlock | 3 A | 2 | 0.38 µm | 15 µin | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Board Edge Right Angle Through Hole | Receptacle Female Sockets | Gold | Mounting Brackets Shielded | Housing/Shell | 3 A | 2 | 0.38 µm | 15 µin | 4-40 | |
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Board Edge Right Angle Through Hole | Receptacle Female Sockets | Gold | Board Lock Mounting Brackets Shielded | 4-40 Mating Side Female Screwlock | Flash | 3 A | 2 | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Right Angle Through Hole | Receptacle Female Sockets | Gold | Board Lock Mounting Brackets Shielded | Housing/Shell (Unthreaded) | 3 A | 2 | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Board Edge Right Angle Through Hole | Receptacle Female Sockets | Gold | Board Lock Mounting Brackets Shielded | Housing/Shell (M3) | 3 A | 2 | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Board Edge Right Angle Through Hole | Receptacle Female Sockets | Gold | Mounting Brackets Shielded | Housing/Shell | Flash | 3 A | 2 | 4-40 | ||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Board Edge Right Angle Through Hole | Receptacle Female Sockets | Gold | Board Lock Mounting Brackets Shielded | 4-40 Mating Side Female Screwlock | Flash | 3 A | 2 | |||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Right Angle Through Hole | Receptacle Female Sockets | Gold | Board Lock Mounting Brackets Shielded | Housing/Shell (M3) | Flash | 3 A | 2 | |||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Copper Alloy | Black | UL94 V-0 | Signal | 2 | 10.4 mm | 0.409 in | 15 | Solder | D-Sub | Nickel Plated Steel | Right Angle Through Hole | Receptacle Female Sockets | Gold | Board Lock Mounting Brackets Shielded | Housing/Shell | Flash | 3 A | 2 | 4-40 |
