337-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 33 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Card Type | Read Out | Pitch | Pitch | Number of Positions/Bay/Row | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions [custom] | Gender | Mounting Type | Termination | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 33 | Female | Through Hole | Solder | Green | |

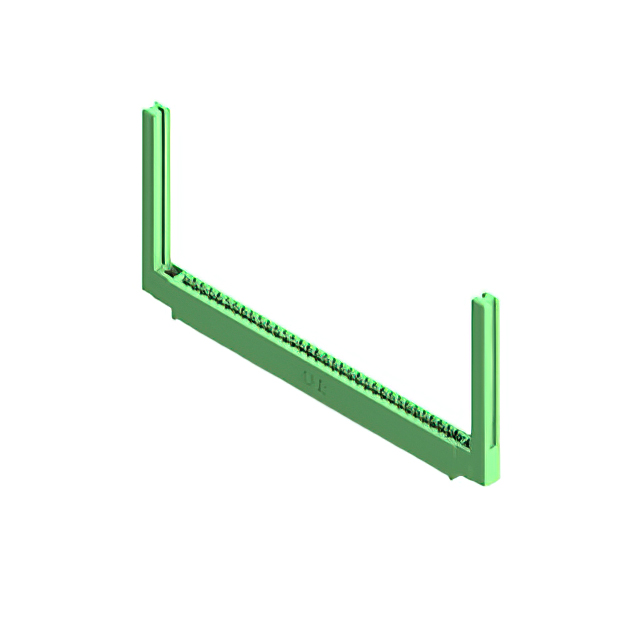

 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 4-40 Threaded Insert Top Mount Opening | 33 | Female | Through Hole | Wire Wrap | Green | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 33 | Female | Through Hole | Solder Eyelet(s) | Green | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | 33 | Female | Through Hole | Wire Wrap | Green | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | 33 | Female | Through Hole | Solder | Green | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 33 | Female | Through Hole | Wire Wrap | Green | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 33 | Female | Through Hole | Wire Wrap | Green | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 33 | Female | Through Hole | Solder Eyelet(s) | Green | |||

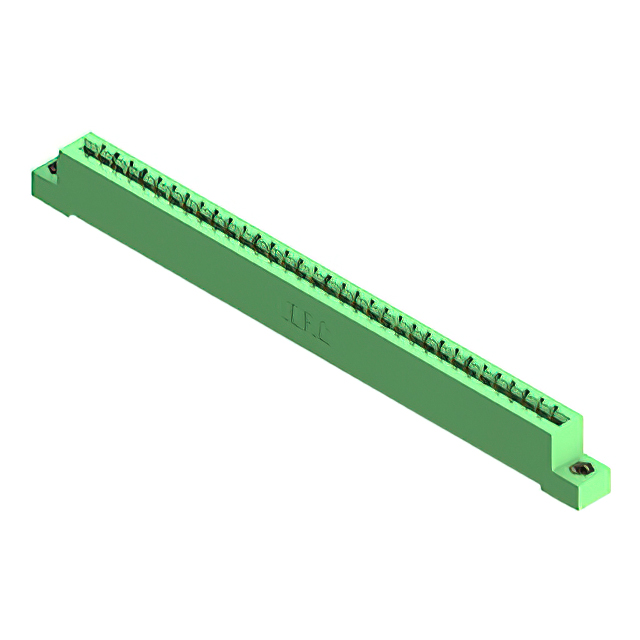

 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 4-40 Threaded Insert Top Mount Opening | 33 | Female | Through Hole | Solder | Green | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 33 | 1 | -40 C | 105 ░C | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 33 | Female | Through Hole | Solder | Green |
