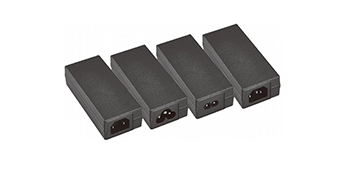

PEAD50B Series

Desktop Power Supply 24V 50W *New Slimline Design*

Manufacturer: TT Electronics/BI

Catalog

Desktop Power Supply 24V 50W *New Slimline Design*

Catalog

Desktop Power Supply 24V 50W *New Slimline Design*

Part	Approval Agency	Input Connector	Region Utilized	Form	Cord Length	Cord Length	Voltage - Output	Polarization	Output Connector	Output Connector [x]	Output Connector [diameter]	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Current - Output (Max) [Max]	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)
TT Electronics/BI PEAD50B-18-B2	CB CCC CE cULus PSE UKCA	IEC 320-C14	International	Desktop (Class I)	1.5 m	59 in	48 V	Positive Center	Barrel Plug	10 mm	2.5 mm 5.5 mm	150 mW	105 mm	1.1 in	4.13 in	1.81 in	28 mm	46 mm	CoC Tier 2 Level VI	62368-1	0 °C	60 °C	Cord (Sold Separately)	1.04 A	ITE (Commercial)	264 VAC	90 VAC	50 W
TT Electronics/BI PEAD50B-12-B2	CB CCC CE cULus PSE UKCA	IEC 320-C14	International	Desktop (Class I)	1.5 m	59 in	12 V	Positive Center	Barrel Plug	10 mm	2.5 mm 5.5 mm	150 mW	105 mm	1.1 in	4.13 in	1.81 in	28 mm	46 mm	CoC Tier 2 Level VI	62368-1	0 °C	60 °C	Cord (Sold Separately)	4.19 A	ITE (Commercial)	264 VAC	90 VAC	50 W
TT Electronics/BI PEAD50B-14-B2	CB CCC CE cULus PSE UKCA	IEC 320-C14	International	Desktop (Class I)	1.5 m	59 in	24 V	Positive Center	Barrel Plug	10 mm	2.5 mm 5.5 mm	150 mW	105 mm	1.1 in	4.13 in	1.81 in	28 mm	46 mm	CoC Tier 2 Level VI	62368-1	0 °C	60 °C	Cord (Sold Separately)	2.08 A	ITE (Commercial)	264 VAC	90 VAC	50 W
TT Electronics/BI PEAD50B-13-B2	CB CCC CE cULus PSE UKCA	IEC 320-C14	International	Desktop (Class I)	1.5 m	59 in	15 V	Positive Center	Barrel Plug	10 mm	2.5 mm 5.5 mm	150 mW	105 mm	1.1 in	4.13 in	1.81 in	28 mm	46 mm	CoC Tier 2 Level VI	62368-1	0 °C	60 °C	Cord (Sold Separately)	3.33 A	ITE (Commercial)	264 VAC	90 VAC	50 W
