BSC016 Series
Manufacturer: INFINEON
Beta
⌘K

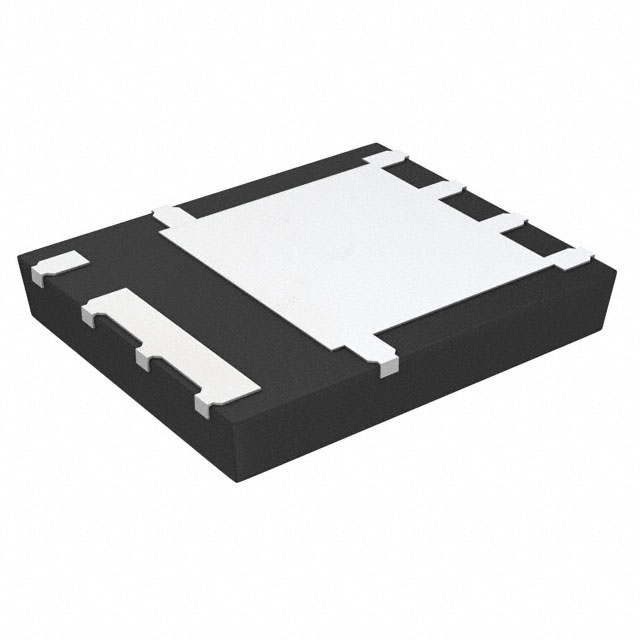

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 60 V ; SUPERSO8 5X6 PACKAGE; 1.6 MOHM;
| Part | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) | Mounting Type | FET Type | Power Dissipation (Max) | Vgs(th) (Max) @ Id | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds [Max] | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) | Technology | Input Capacitance (Ciss) (Max) @ Vds | Gate Charge (Qg) (Max) @ Vgs [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | PG-TDSON-8 FL | 175 °C | -55 °C | 8-PowerTDFN | 30 A 100 A | 60 V | Surface Mount | N-Channel | 2.5 W 139 W | 2.8 V | 1.6 mOhm | 5200 pF | 71 nC | 20 V | 6 V 10 V | MOSFET (Metal Oxide) | ||
 INFINEON | PG-TDSON-8-1 | 150 °C | -55 °C | 8-PowerTDFN | 40 V | Surface Mount | N-Channel | 2.5 W 139 W | 2 V | 1.6 mOhm | 20 V | 4.5 V 10 V | MOSFET (Metal Oxide) | 12000 pF | 150 nC |
