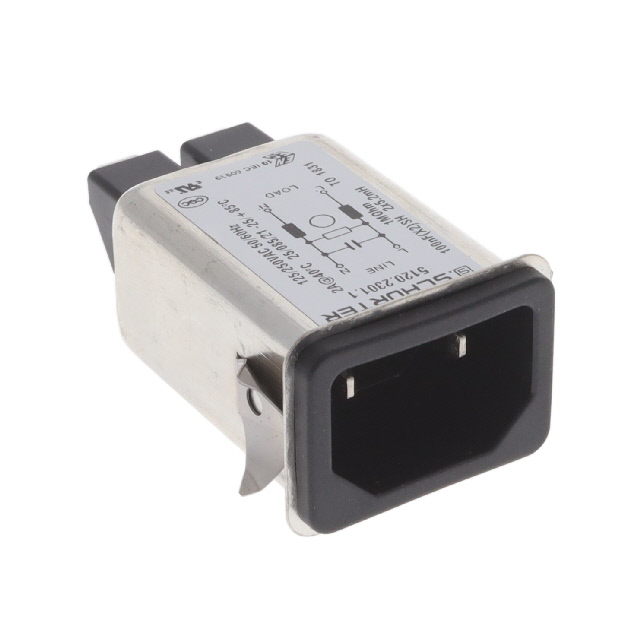

5120.2301 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PWR ENT RCPT IEC320-C18 PANEL QC
| Part | Accomodates a Fuse | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Voltage Rating - Appliance Inlet | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Material Flammability Rating | Number of Positions | Current Rating - Appliance Inlet | Filter Type | Connector Style | Termination | Termination | Termination | Features | Mounting Type | Ingress Protection | Approval Agency | Current Rating - Filter | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.79 mm | 0.079 " | 0.031 " | 2 mm | 250 VAC | 29.4 mm | 21.5 mm | UL94 V-0 | 2 | 2 A | Filtered (EMI RFI) - Commercial Medical | IEC 320-C18 | 6.3 mm | Quick Connect | 0.25 " | Shielded | Panel Mount Snap-In | IP40 | CCC cULus ENEC | 2 A | Receptacle Male Blades |
