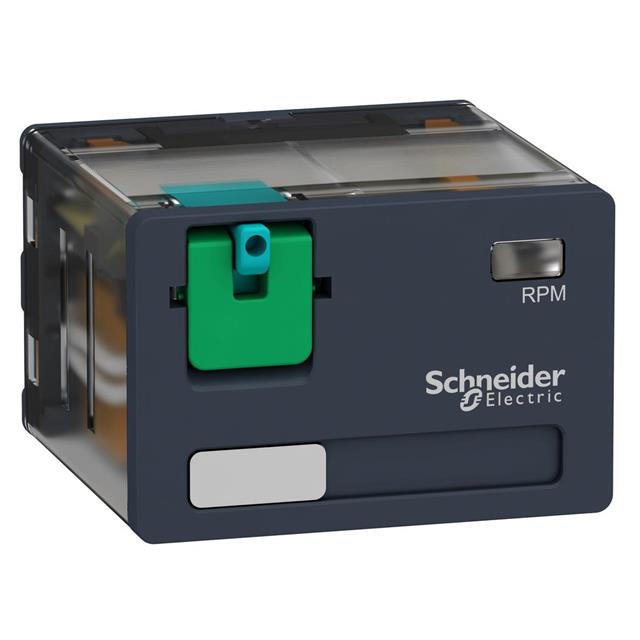

RPM41 Series

Catalog

HARMONY, POWER PLUG-IN RELAY, 15

Part	Coil Resistance	Coil Type	Release Time	Relay Type	Must Release Voltage	Contact Rating (Current)	Contact Material	Termination Style	Switching Voltage [Max]	Coil Voltage	Must Operate Voltage	Operate Time	Approval Agency	Features	Load - Max Switching	Mounting Type	Coil Current	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]
SCHNEIDER ELECTRIC RPM41ED	1.21 kOhms	Non Latching	20 ms	General Purpose	4.8 VDC	15 A	Silver Nickel (AgNi)	Plug In	28 VDC 250 VAC	48 VDC	38.4 VDC	20 ms	CSA EAC UL	Test Button	420 W 3750 VA	Socketable	39.7 mA	4PDT (4 Form C)	55 °C	-40 C
SCHNEIDER ELECTRIC RPM41BD	303 Ohms	Non Latching	20 ms	General Purpose	2.4 VDC	15 A	Silver Nickel (AgNi)	Plug In	28 VDC 250 VAC	24 VDC	19.2 VDC	20 ms	CSA EAC UL	Lighted Indicator	420 W 3750 VA	Socketable	79.2 mA	4PDT (4 Form C)	55 °C	-40 C
SCHNEIDER ELECTRIC RPM41B7	80 Ohms	Non Latching	20 ms	General Purpose	3.6 VAC	15 A	Silver Nickel (AgNi)	Plug In	28 VDC 250 VAC	24 VAC	19.2 VAC	20 ms	CSA EAC UL	Test Button	420 W 3750 VA	Socketable	300 mA	4PDT (4 Form C)	55 °C	-40 C
SCHNEIDER ELECTRIC RPM41JD	75.8 Ohms	Non Latching	20 ms	General Purpose	1.2 VDC	15 A	Silver Nickel (AgNi)	Plug In	28 VDC 250 VAC	12 VDC	9.6 VDC	20 ms	CSA EAC UL	Test Button	420 W 3750 VA	Socketable	158.3 mA	4PDT (4 Form C)	55 °C	-40 C
