1415535 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

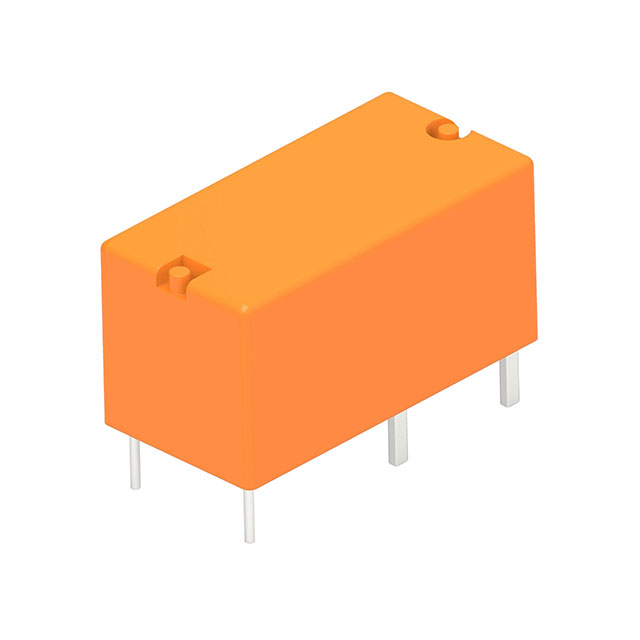

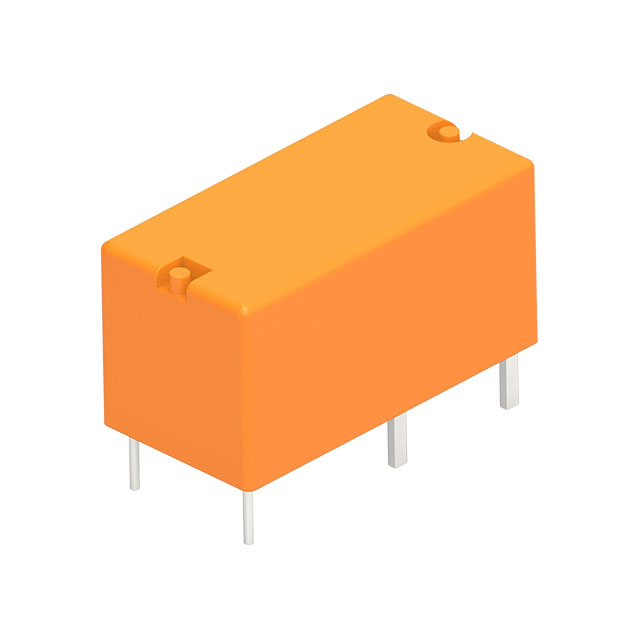

RELAY GEN PURPOSE SPST 6A 48V
| Part | Coil Resistance | Mounting Type | Must Operate Voltage | Load - Max Switching [Max] | Seal Rating | Coil Type | Termination Style | Relay Type | Approval Agency | Must Release Voltage | Contact Material | Contact Rating (Current) | Release Time | Operate Time | Coil Voltage | Contact Form | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Coil Insulation | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 10.97 kOhms | Through Hole | 36 VDC | 2000 VA | Sealed - Flux Protection | Non Latching | PC Pin | General Purpose | cURus VDE | 4.8 VDC | Silver Nickel (AgNi) | 6 A | 8 ms | 8 ms | 48 VDC | SPST-NO (1 Form A) | 4.4 mA | 85 °C | -40 C | 400 VAC | ||
 TE Connectivity AMP Connectors | ||||||||||||||||||||||
 TE Connectivity AMP Connectors | 172 Ohms | Through Hole | 4.5 VDC | 2000 VA | Sealed - Flux Protection | Non Latching | PC Pin | General Purpose | cURus VDE | 0.6 VDC | Silver Nickel (AgNi) | 6 A | 8 ms | 8 ms | SPST-NO (1 Form A) | 34.9 mA | 85 °C | -40 C | 400 VAC | |||
 TE Connectivity AMP Connectors | 405 Ohms | Through Hole | 6.8 VDC | 2000 VA | Non Latching | PC Pin | General Purpose | cURus VDE | Silver Nickel (AgNi) | 6 A | 8 ms | 8 ms | 9 VDC | SPST-NO (1 Form A) | 22.2 mA | 85 °C | -40 C | 400 VAC | ||||
 TE Connectivity AMP Connectors | Through Hole | 7.3 VDC | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | General Purpose | cURus VDE | 0.9 VDC | Silver Nickel (AgNi) | 16 A | 12 VDC | SPST-NO (1 Form A) | 0.03 A | 125 °C | -20 ░C | 400 VAC | Class F | 6400 VA | |||||
 TE Connectivity AMP Connectors | 1.545 kOhms | Through Hole | 13.5 VDC | 2000 VA | Sealed - Flux Protection | Non Latching | PC Pin | General Purpose | cURus VDE | 1.8 VDC | Silver Nickel (AgNi) | 6 A | 8 ms | 8 ms | 18 VDC | SPST-NO (1 Form A) | 11.7 mA | 85 °C | -40 C | 400 VAC | ||
TE Connectivity AMP Connectors | 400 Ohms | Through Hole | 7.3 VDC | Sealed - Flux Protection | Non Latching | PC Pin Quick Connect - 0.250" (6.3mm) | General Purpose | 0.9 VDC | Silver Nickel (AgNi) | 16 A | 12 VDC | SPST-NO (1 Form A) | 0.03 A | 125 °C | -20 ░C | 400 VAC | Class F |
