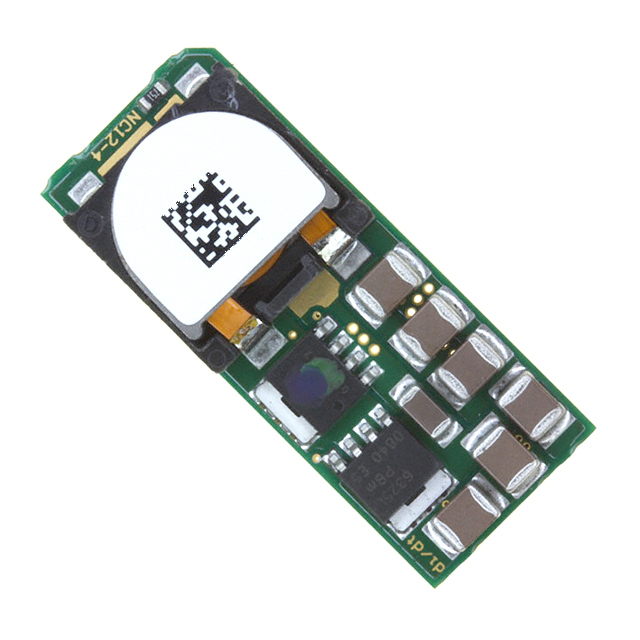

YS12S10 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC DC CONVERTER 0.7525-5.5V 55W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Type | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Number of Outputs | Features | Power (Watts) | Control Features | Voltage - Input (Min) [Min] | Applications | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Package / Case | Voltage - Input (Max) [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 85 °C | -40 C | 10 A | Non-Isolated PoL Module | Surface Mount | 0.32 " | 13.5 mm | 8 mm | 1.3 in | 33 mm | 0.53 in | 1 | OCP OTP Remote On/Off UVLO | 55 W | Active Low Enable | 9.6 V | ITE (Commercial) | 0.7525 V | 5.5 V | 6-SMD Module | 14 V | 95 % |
