Trench/Fieldstop IGBT4 Series
Manufacturer: INFINEON
Beta
⌘K

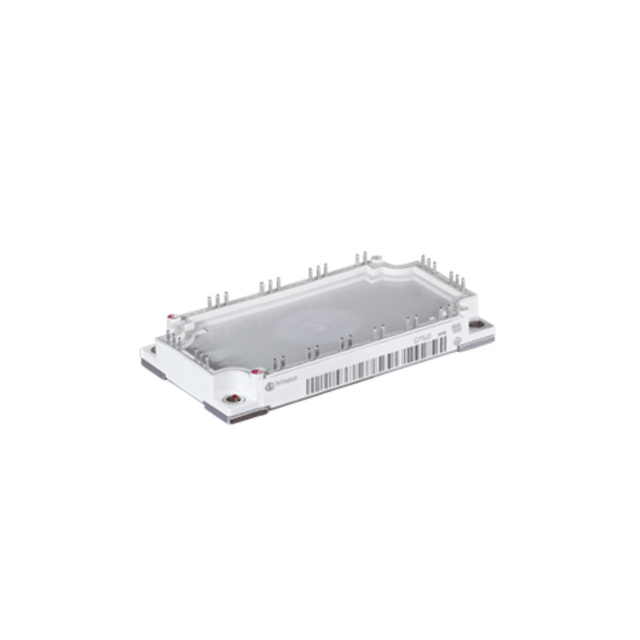

THE F4-200R17N3E4 IS A FOURPACK IGBT4 - E4 MODULE IN A ECONOPACK™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 200 A.
| Part | Configuration | Mounting Type | Current - Collector Cutoff (Max) [Max] | Current - Collector (Ic) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Power - Max [Max] | Input Capacitance (Cies) @ Vce | Package / Case | Supplier Device Package | Input | Vce(on) (Max) @ Vge, Ic | Voltage - Collector Emitter Breakdown (Max) [Max] | IGBT Type | NTC Thermistor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Full Bridge | Chassis Mount | 1 mA | 200 A | -40 °C | 150 °C | 20 mW | 18 nF | Module | Module | Standard | 2.3 V | 1700 V | Trench Field Stop |
