K10WDM-P Series
Manufacturer: ODU
Beta
⌘K

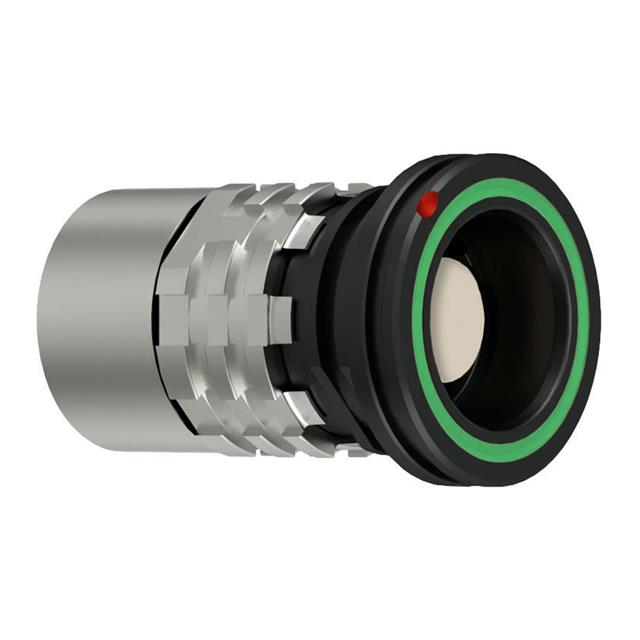

ODU AMC HD RECEPT, INLINE, STY 1
| Part | Applications | Current Rating (Amps) | Color | Backshell Material, Plating | Contact Material | Orientation | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Number of Positions | Shell Size - Insert [custom] | Cable Opening | Cable Opening | Shell Finish | Ingress Protection | Shielding | Mounting Type | Contact Finish - Mating | Connector Type | Fastening Type | Features | Insert Material | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military | 1 A 5 A | Black Silver | Brass Ruthenium over Electroless Nickel | Copper Alloy | D | UL94 V-0 | -51 °C | 125 °C | Metal | 50 µin | 1.27 µm | Brass | 9 | 0 | 0.276 in | 7 mm | Ruthenium over Electroless Nickel | IP68 - Dust Tight Waterproof | Shielded | Free Hanging (In-Line) | Gold | Receptacle Female Sockets | Detent Lock Push-Pull | Backshell | Polyetheretherketone (PEEK) | |||
Industrial Medical Military | 1 A 5 A | Black Silver | Brass Ruthenium over Electroless Nickel | Copper Alloy | D | UL94 V-0 | -51 °C | 125 °C | Metal | 50 µin | 1.27 µm | Brass | 0 | 0.276 in | 7 mm | Ruthenium over Electroless Nickel | IP68 - Dust Tight Waterproof | Shielded | Free Hanging (In-Line) | Gold | Receptacle Female Sockets | Detent Lock Push-Pull | Backshell | Polyetheretherketone (PEEK) | 2 | 10 |
