ET215N Series

Catalog

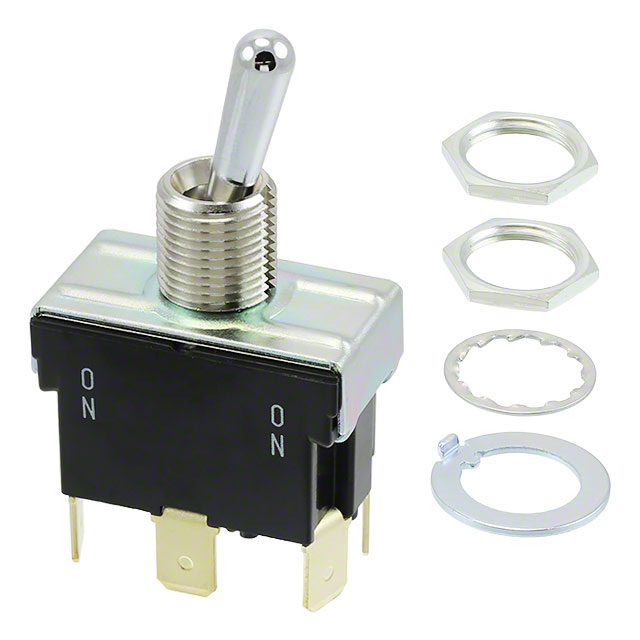

SWITCH TOGGLE DPDT 15A 125V

Part	Panel Cutout Dimensions [diameter]	Circuit	Termination Style	Actuator Type	Electrical Life	Switch Function	Actuator Length [x]	Bushing Thread	Bushing Thread	Illumination	Voltage Rating - AC	Current Rating (Amps)
Nidec Components Corporation ET215N10-Z	12.5 mm	DPDT	Screw Terminal	Standard Round	30000 Cycles	On-On	17 mm	M12	1 x 1	Non-Illuminated	125 V	15 A
Nidec Components Corporation ET215N12-Z	12.5 mm	DPDT	Solder Lug	Standard Round	30000 Cycles	On-On	17 mm	M12	1 x 1	Non-Illuminated	125 V	15 A
Nidec Components Corporation ET215N-Z	12.5 mm	DPDT	Quick Connect - 0.250" (6.3mm)	Standard Round	30000 Cycles	On-On	17 mm	M12	1 x 1	Non-Illuminated	125 V	15 A
