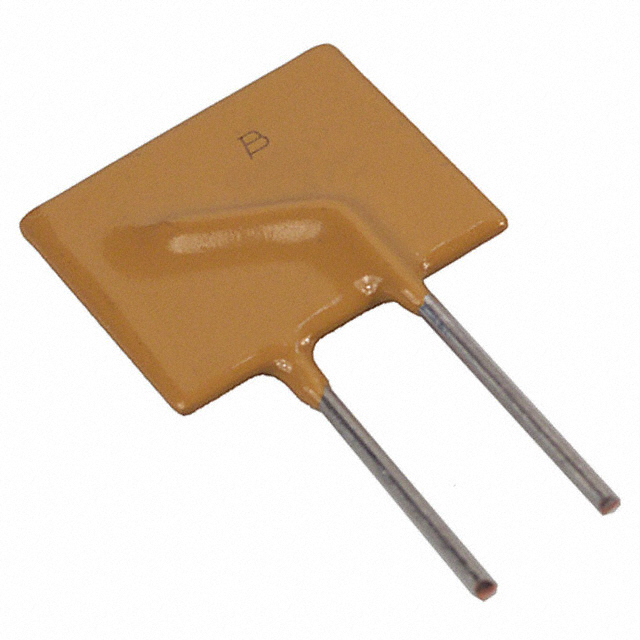

MF-R800 Series

Catalog

PTC RESET FUSE 30V 8A RADIAL

Part	Approval Agency	Time to Trip	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Current - Hold (Ih) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Current - Max [Max]	Current - Trip (It)	Mounting Type	Resistance - Post Trip (R1) (Max) [Max]
Bourns Inc. MF-R800-2-99	cURus TUV	18.8 s	32.9 mm	1.295 "	Disc Radial	Polymeric	85 °C	-40 C	0.953 in	3 mm	24.2 mm	0.118 in	30 V	8 A	5 mOhms	40 A	16 A	Through Hole	30 mOhms
Bourns Inc. MF-R800-0-003	cURus TUV	18.8 s	32.9 mm	1.295 "	Disc Radial	Polymeric	85 °C	-40 C	0.953 in	3 mm	24.2 mm	0.118 in	30 V	8 A	5 mOhms	40 A	16 A	Through Hole	30 mOhms
Bourns Inc. MF-R800-0-99	cURus TUV	18.8 s	32.9 mm	1.295 "	Disc Radial	Polymeric	85 °C	-40 C	0.953 in	3 mm	24.2 mm	0.118 in	30 V	8 A	5 mOhms	40 A	16 A	Through Hole	30 mOhms
Bourns Inc. MF-R800-AP	cURus TUV	18.8 s	32.9 mm	1.295 "	Disc Radial	Polymeric	85 °C	-40 C	0.953 in	3 mm	24.2 mm	0.118 in	30 V	8 A	5 mOhms	40 A	16 A	Through Hole	30 mOhms
