2842244 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

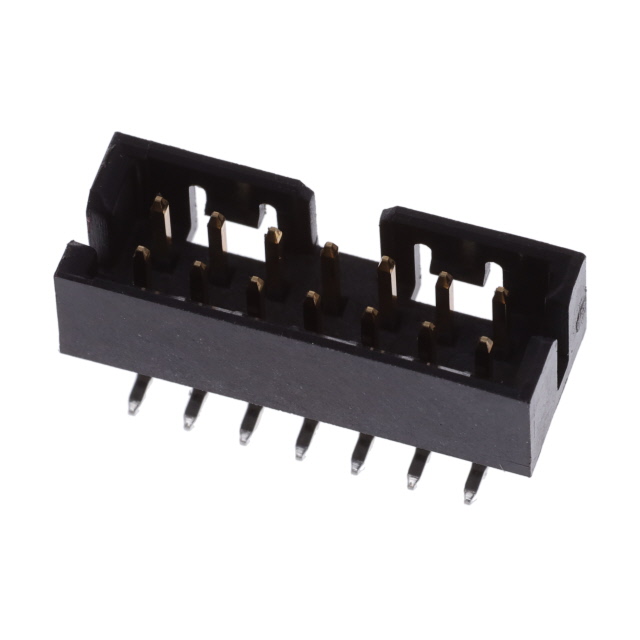

14P, AMPMODU 2MM, DOUBLE ROW SHR

Part	Insulation Color	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Material	Fastening Type	Number of Rows	Contact Finish - Post	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shrouding	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Style	Contact Material	Connector Type	Applications	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Features	Current Rating (Amps)	Voltage Rating
TE Connectivity Raychem Cable Protection 1-2842244-4	Black	Surface Mount	3.94 µin	0.1 µm	Gold	Thermoplastic	Detent Lock	2	Tin	All	0.079 in	2 mm	Male Pin	0.141 in	3.6 mm	Square	125 °C	-40 °C	Solder	Shrouded - 4 Wall	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Copper Alloy	Header	General Purpose Industrial	14	2 çm	78.7 çin	6.4 mm	0.252 in	Pick and Place	2 A	125 VAC
TE Connectivity Raychem Cable Protection 3-2842244-0	Black	Surface Mount	3.94 µin	0.1 µm	Gold	Thermoplastic	Detent Lock	2	Tin	All	0.079 in	2 mm	Male Pin	0.142 in	3.6 mm	Square	125 °C	-40 °C	Solder	Shrouded - 4 Wall	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Copper Alloy	Header		30	2 çm	78.7 çin	6.4 mm	0.252 in	Pick and Place	2 A	125 VAC
TE Connectivity Raychem Cable Protection 2-2842244-6	Black	Surface Mount	3.94 µin	0.1 µm	Gold	Thermoplastic	Detent Lock	2	Tin	All	0.079 in	2 mm	Male Pin	0.142 in	3.6 mm	Square	125 °C	-40 °C	Solder	Shrouded - 4 Wall	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Copper Alloy	Header		26	2 çm	78.7 çin	6.4 mm	0.252 in	Pick and Place	2 A	125 VAC
TE Connectivity Raychem Cable Protection 4-2842244-4	Black	Surface Mount	3.94 µin	0.1 µm	Gold	Thermoplastic	Detent Lock	2	Tin	All	0.079 in	2 mm	Male Pin	0.142 in	3.6 mm	Square	125 °C	-40 °C	Solder	Shrouded - 4 Wall	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Copper Alloy	Header		44	2 çm	78.7 çin	6.4 mm	0.252 in	Pick and Place	2 A	125 VAC
TE Connectivity Raychem Cable Protection 3-2842244-4	Black	Surface Mount	3.94 µin	0.1 µm	Gold	Thermoplastic	Detent Lock	2	Tin	All	0.079 in	2 mm	Male Pin	0.142 in	3.6 mm	Square	125 °C	-40 °C	Solder	Shrouded - 4 Wall	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Copper Alloy	Header		34	2 çm	78.7 çin	6.4 mm	0.252 in	Pick and Place	2 A	125 VAC
TE Connectivity Raychem Cable Protection 4-2842244-0	Black	Surface Mount	3.94 µin	0.1 µm	Gold	Thermoplastic	Detent Lock	2	Tin	All	0.079 in	2 mm	Male Pin	0.142 in	3.6 mm	Square	125 °C	-40 °C	Solder	Shrouded - 4 Wall	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Copper Alloy	Header		40	2 çm	78.7 çin	6.4 mm	0.252 in	Pick and Place	2 A	125 VAC
TE Connectivity Raychem Cable Protection 2-2842244-4	Black	Surface Mount	3.94 µin	0.1 µm	Gold	Thermoplastic	Detent Lock	2	Tin	All	0.079 in	2 mm	Male Pin	0.142 in	3.6 mm	Square	125 °C	-40 °C	Solder	Shrouded - 4 Wall	UL94 V-0	0.079 in	2 mm	Board to Board Cable	Copper Alloy	Header		24	2 çm	78.7 çin	6.4 mm	0.252 in	Pick and Place	2 A	125 VAC
