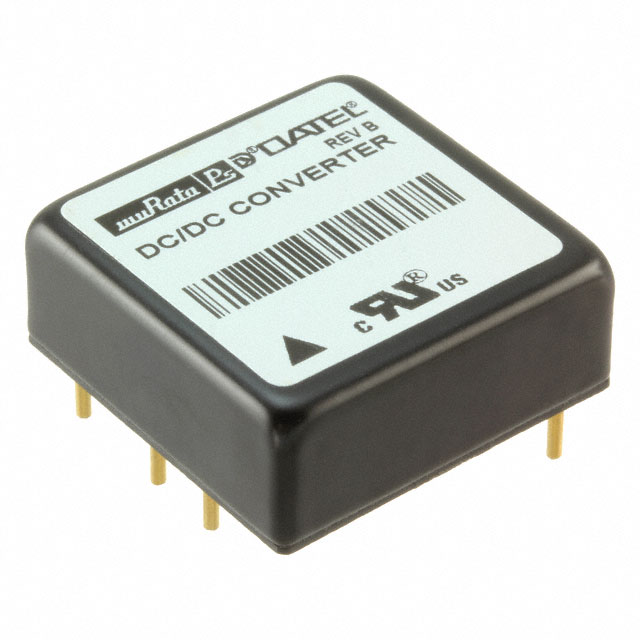

BPM15 Series

Catalog

DC DC CONVERTER +/-5V 15W

Part	Applications	Efficiency	Features	Voltage - Input (Max) [Max]	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Type	Power (Watts)	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Mounting Type	Current - Output (Max)	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Control Features	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Electronics BPM15-050-Q12P-C	ITE (Commercial)	84 %	OTP OVP Remote On/Off SCP	36 V	-5 V	85 °C	-40 C	Isolated Module	15 W	2	6-DIP Module	9 V	5 V	Through Hole	1.5 A	1.6 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	Active High Enable
Murata Electronics BPM15-120-Q48-C	ITE (Commercial)	85 %	OTP OVP SCP	75 V	-12 V	85 °C	-40 C	Isolated Module	15 W	2	6-DIP Module	18 V	12 V	Through Hole		1.6 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm		625 mA	625 mA
Murata Electronics BPM15-150-Q48-C	ITE (Commercial)	86 %	OTP OVP SCP	75 V	-15 V	85 °C	-40 C	Isolated Module	15 W	2	6-DIP Module	18 V	15 V	Through Hole	500 mA	1.6 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm
Murata Electronics BPM15-150-Q12P-C	ITE (Commercial)	84.5 %	OTP OVP Remote On/Off SCP	36 V	-15 V	85 °C	-40 C	Isolated Module	15 W	2	6-DIP Module	9 V	15 V	Through Hole	500 mA	1.6 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	Active High Enable
Murata Electronics BPM15-150-Q12N-C	ITE (Commercial)	84.5 %	OTP OVP Remote On/Off SCP	36 V	-15 V	85 °C	-40 C	Isolated Module	15 W	2	6-DIP Module	9 V	15 V	Through Hole	500 mA	1.6 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	Active Low Enable
Murata Electronics BPM15-050-Q48N-C	ITE (Commercial)	81.4 %	OTP OVP Remote On/Off SCP	75 V	-5 V	85 °C	-40 C	Isolated Module	15 W	2	6-DIP Module	18 V	5 V	Through Hole	1.5 A	1.6 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	Active Low Enable
