SPC 4 Series

Catalog

HEADERS & WIRE HOUSINGS PCV 4/12-G-6 35 P26 THR

Part	Insulation Height	Insulation Height	Housing Material	Contact Material	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Mounting Type	Current - IEC	Voltage - IEC	Number of Positions	Number of Levels	Header Orientation	Termination Style	Type	Contact Mating Finish	Color	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Wire Strip Length [Max]	Wire Strip Length [Min]	Features	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Plug Wire Entry
Phoenix Contact 1271669	0.984 "	25 mm	Liquid Crystal Polymer (LCP)	Copper Alloy	0.102 in	2.6 mm	UL94 V-0	Through Hole	24 A	800 V	12	1	Vertical	Solder	Blade Pins Header Shrouded (4 Side)	Tin	Black	12	-40 C	105 ░C	6.35 mm	0.25 in

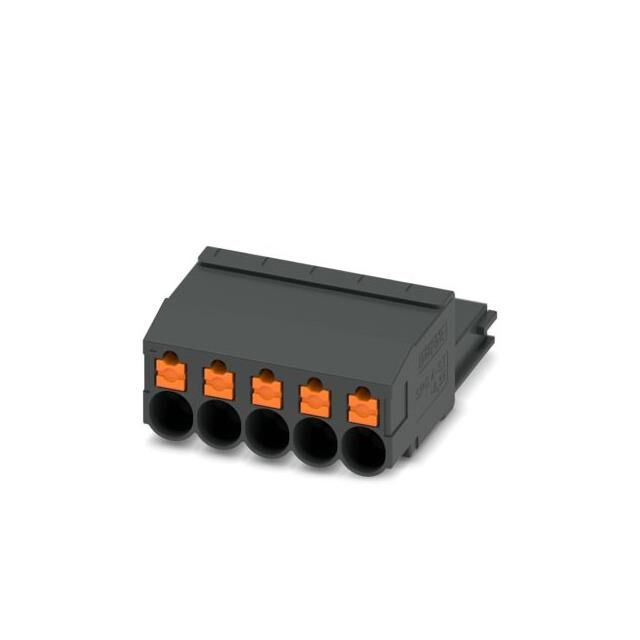

Phoenix Contact 1232903	0.654 in	16.61 mm	Polyamide (PA) Nylon	Copper Alloy			UL94 V-0	Free Hanging (In-Line)	24 A	1 kV	5	1		Push-In Spring Screwless - Leg Spring	Plug Female Sockets	Tin	Black	5	-40 C	105 ░C	6.35 mm	0.25 in	12 mm	10 mm	Push Button Actuated	24 AWG	10 AWG	4 mm²	0.2 mm²	180 °

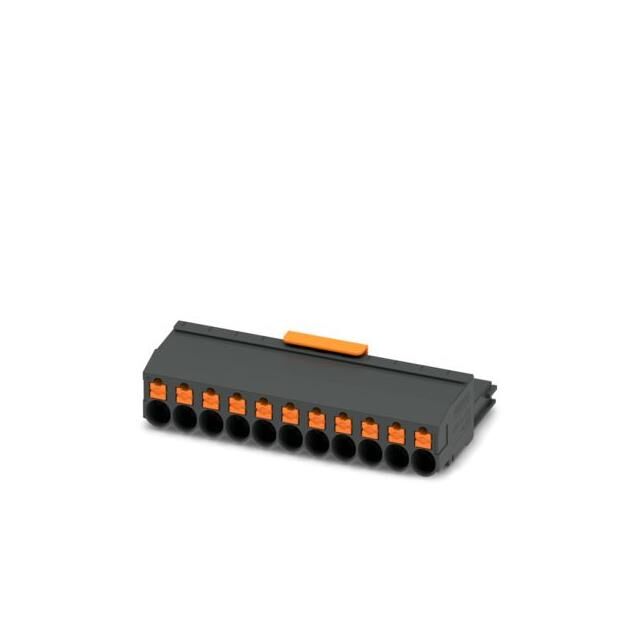

Phoenix Contact 1233129	0.713 in	18.1 mm	Polyamide (PA) Nylon	Copper Alloy			UL94 V-0	Free Hanging (In-Line)	24 A	1 kV	11	1		Push-In Spring Screwless - Leg Spring	Plug Female Sockets	Tin	Black	11	-40 C	105 ░C	6.35 mm	0.25 in	12 mm	10 mm	Push Button Actuated	24 AWG	10 AWG	4 mm²	0.2 mm²	180 °
