E35SE Series

Catalog

9-60VIN; 48VOUT, 150W, ENCAPSULA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Control Features	Standard Number	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Applications	Supplier Device Package	Type	Voltage - Isolation	Features	Voltage - Input (Max) [Max]	Voltage - Output 1	Power (Watts)	Number of Outputs	Package / Case

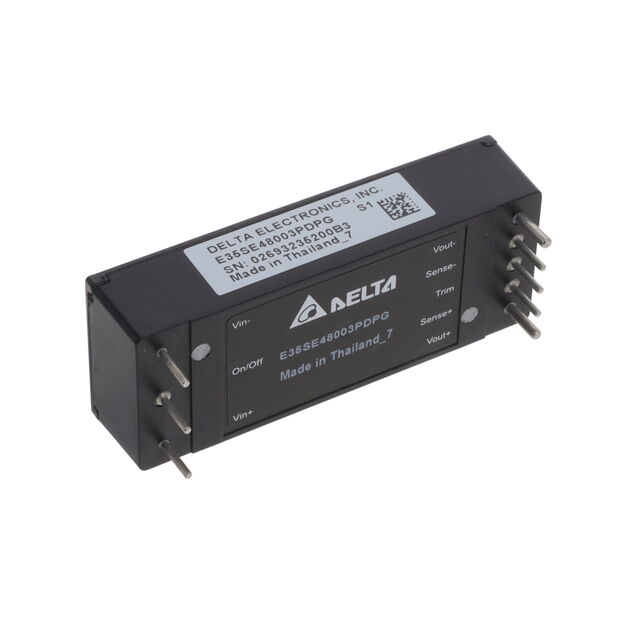

Delta Electronics E35SE48003PDPG	-40 °C	85 °C	Through Hole	3 A	9 V	91.2 %	Active High Enable	50155 60950-1 62368-1	CSA EN IEC UL	0.9 in	2.3 in	22.8 mm	0.53 in	58.4 mm	13.5 mm	ITE (Commercial) Railway	Eighth Brick	Isolated Module	4.242 kV	Adjustable Output Remote On/Off Remote Sense	60 V	48 V	144 W	1	Eighth Brick
Delta Electronics E35SE24006PDPG	-40 °C	85 °C	Through Hole	6 A	9 V	92.2 %	Active High Enable	50155 60950-1 62368-1	CSA EN IEC UL	0.9 in	2.3 in	22.8 mm	0.53 in	58.4 mm	13.5 mm	ITE (Commercial) Railway	Eighth Brick	Isolated Module	4.242 kV	Adjustable Output Remote On/Off Remote Sense	60 V	24 V	144 W	1	Eighth Brick

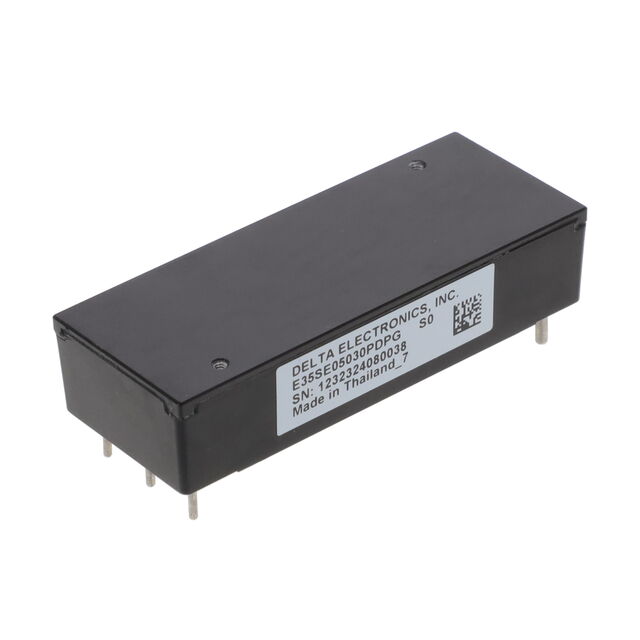

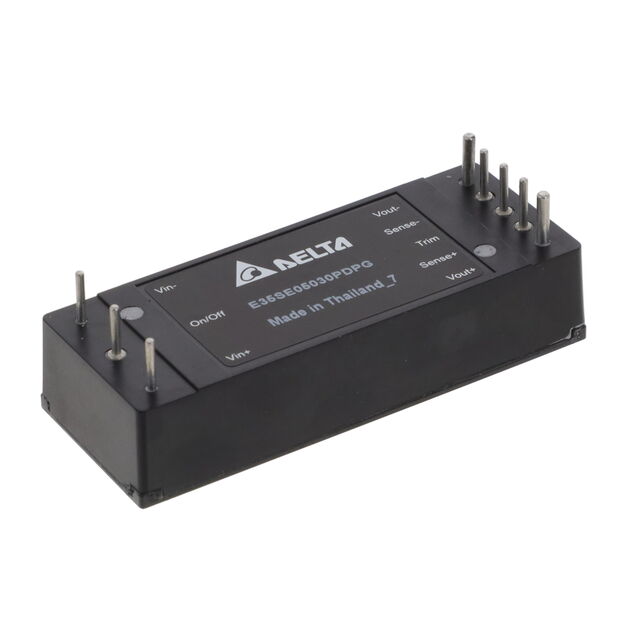

Delta Electronics E35SE05030PDPG	-40 °C	85 °C	Through Hole	30 A	9 V	92.2 %	Active High Enable	50155 60950-1 62368-1	CSA EN IEC UL	0.9 in	2.3 in	22.8 mm	0.53 in	58.4 mm	13.5 mm	ITE (Commercial) Railway	Eighth Brick	Isolated Module	4.242 kV	Adjustable Output Remote On/Off Remote Sense	60 V	5 V	150 W	1	Eighth Brick
Delta Electronics E35SE12013PDPG	-40 °C	85 °C	Through Hole	13 A	9 V	91 %	Active High Enable	50155 60950-1 62368-1	CSA EN IEC UL	0.9 in	2.3 in	22.8 mm	0.53 in	58.4 mm	13.5 mm	ITE (Commercial) Railway	Eighth Brick	Isolated Module	4.242 kV	Adjustable Output Remote On/Off Remote Sense	60 V	12 V	156 W	1	Eighth Brick
