16 Series
Manufacturer: Phoenix Contact
Beta
⌘K
D-SUB STANDARD CONNECTORS VS-09-ST-DSUB-CD-B 9P MALE CONTACT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Note | Mating Cycles | Dielectric Material | Flange Feature | Contact Type | Number of Rows [custom] | Features | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Connector Type | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Number of Positions | Contact Material | Voltage Rating | Ingress Protection | Termination | Shell Size, Connector Layout | Contact Finish | Material Flammability Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | -55 C | 125 °C | Contacts Not Included | 500 | Polyester Glass Filled | Housing/Shell (Unthreaded) | Signal | 2 | Grounding Indents | Steel | Yellow Chromate Plated | Plug for Male Contacts | Free Hanging (In-Line) | 1 | DE E | D-Sub | 9 | ||||||||

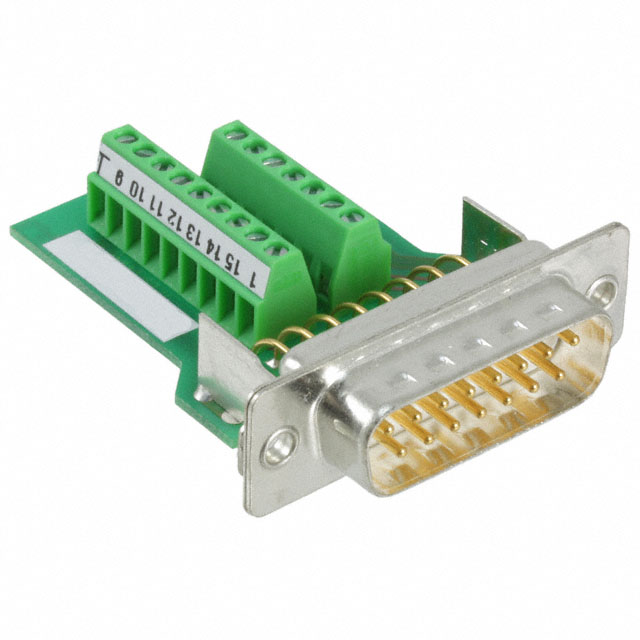

 Phoenix Contact | -20 ░C | 80 °C | Polybutylene Terephthalate (PBT) Polyester | Housing/Shell (Unthreaded) | Signal | 2 | Plug Male Pins | Free Hanging (In-Line) | D-Sub | 15 | Copper Alloy | 60 VDC | IP20 | Terminal Block | 2 | Gold | UL94 V-0 | 5 A |
