BC085 Series
Manufacturer: GCT
Beta
⌘K

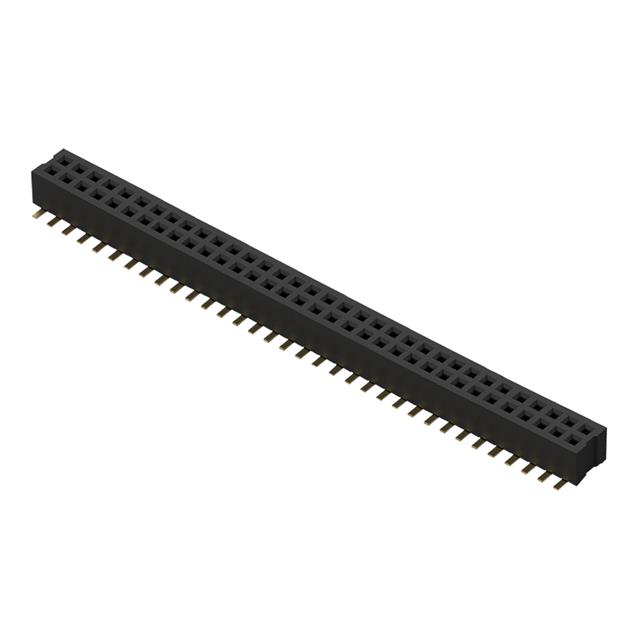

BOARD TO BOARD & MEZZANINE CONNECTORS 68W, 1.0MM PITCH SOCKET, DIL, SMT, VERT, NO PEG, GF, TUBE
| Part | Contact Shape | Contact Material | Insulation Material | Contact Finish Thickness - Post | Number of Positions Loaded | Number of Positions | Current Rating (Amps) | Termination | Contact Finish - Mating | Features | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Fastening Type | Mounting Type | Voltage Rating | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Material Flammability Rating | Contact Type | Connector Type | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Square | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | All | 68 positions | 1 A | Solder | Gold | Pick and Place | 2 | -40 C | 105 ░C | 1 mm | 0.039 in | Push-Pull | Surface Mount | 250 VAC | Gold | 0.039 in | 1 mm | Black | UL94 V-0 | Female Socket | Receptacle Bottom or Top Entry | Flash | |
All | 12 | 1 A | Solder | Gold | Pick and Place | 2 | -40 C | 105 ░C | 1 mm | 0.039 in | Push-Pull | Surface Mount | 250 VAC | Gold | 0.039 in | 1 mm | Black | UL94 V-0 | Female Socket | Receptacle Bottom or Top Entry | Flash | |||||

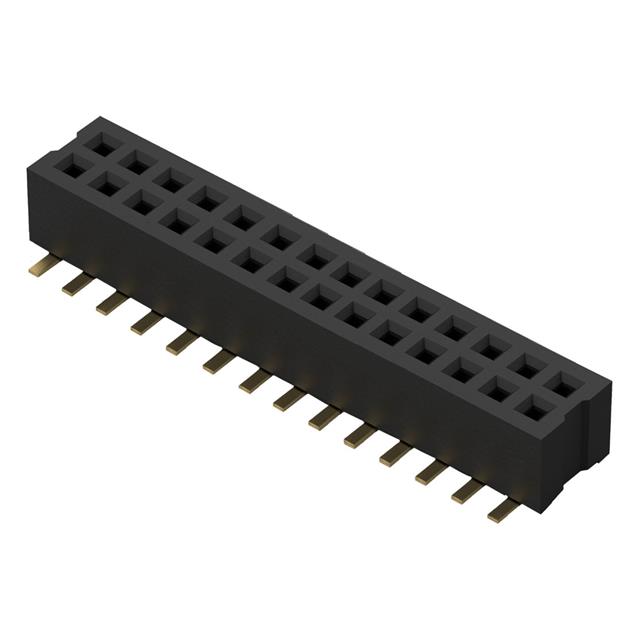

Square | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | All | 28 | 1 A | Solder | Gold | Pick and Place | 2 | -40 C | 105 ░C | 1 mm | 0.039 in | Push-Pull | Surface Mount | 250 VAC | Gold | 0.039 in | 1 mm | Black | UL94 V-0 | Female Socket | Receptacle Bottom or Top Entry | Flash | |

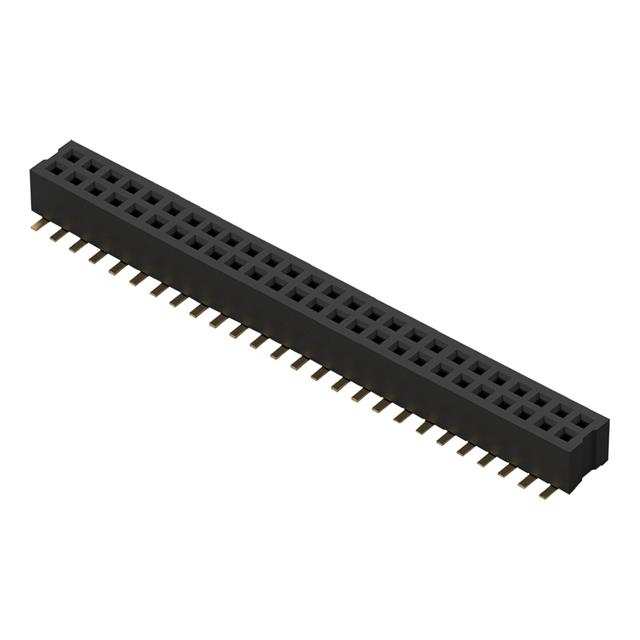

Square | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | All | 52 | 1 A | Solder | Gold | Pick and Place | 2 | -40 C | 105 ░C | 1 mm | 0.039 in | Push-Pull | Surface Mount | 250 VAC | Gold | 0.039 in | 1 mm | Black | UL94 V-0 | Female Socket | Receptacle Bottom or Top Entry | Flash | |

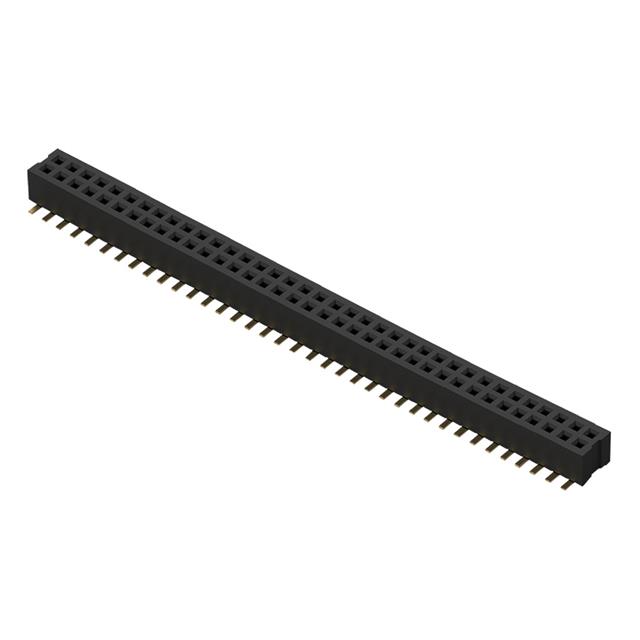

Square | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | All | 74 | 1 A | Solder | Gold | Pick and Place | 2 | -40 C | 105 ░C | 1 mm | 0.039 in | Push-Pull | Surface Mount | 250 VAC | Gold | 0.039 in | 1 mm | Black | UL94 V-0 | Female Socket | Receptacle Bottom or Top Entry | Flash | |

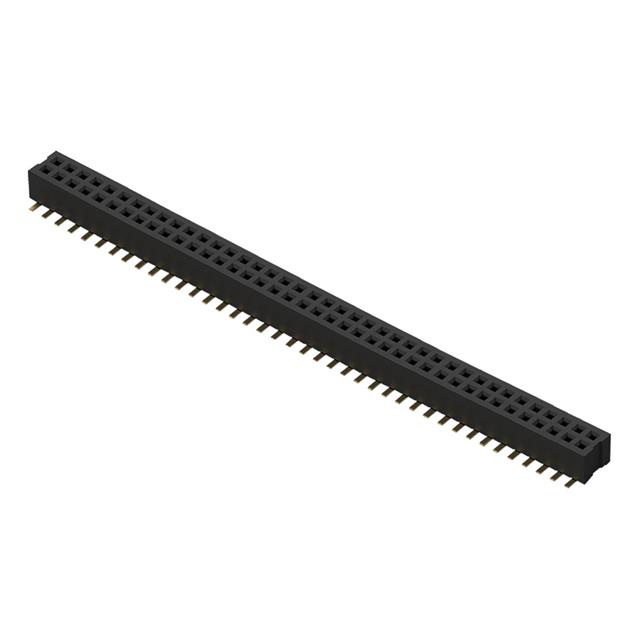

Square | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | All | 80 | 1 A | Solder | Gold | Pick and Place | 2 | -40 C | 105 ░C | 1 mm | 0.039 in | Push-Pull | Surface Mount | 250 VAC | Gold | 0.039 in | 1 mm | Black | UL94 V-0 | Female Socket | Receptacle Bottom or Top Entry | Flash | |

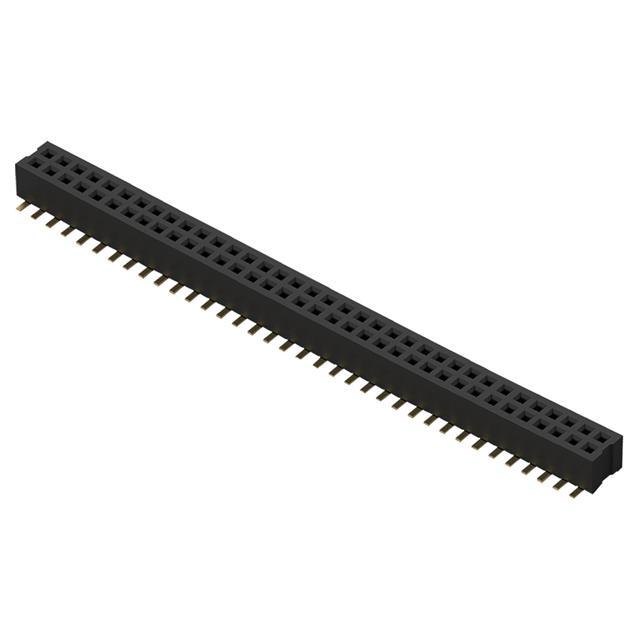

Square | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | All | 72 | 1 A | Solder | Gold | Pick and Place | 2 | -40 C | 105 ░C | 1 mm | 0.039 in | Push-Pull | Surface Mount | 250 VAC | Gold | 0.039 in | 1 mm | Black | UL94 V-0 | Female Socket | Receptacle Bottom or Top Entry | Flash |
