HCF69273 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANTENNAS M2M,HCF,LTE ULINK,SMA TOP LOADED MONOPLOE BLK

Part	Frequency (Center/Band)	Features	Power - Max [Max]	Antenna Type	VSWR	VSWR	Height (Max) [z]	Height (Max) [Max] [z]	Applications	Number of Bands	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Frequency Group	Gain	Ingress Protection

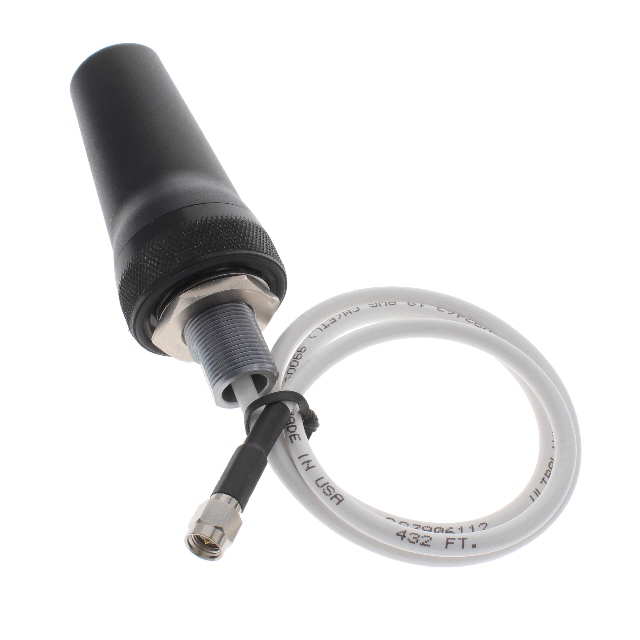

TE Connectivity AMP Connectors HCF69273BN-60A	1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 761 MHz 859 MHz 920 MHz	Cable - 608mm	10 W	Dome	2	2.6	80 mm	3.15 in	General Purpose	8	Panel Mount	2.7 GHz 960 MHz	1.69 GHz 698 MHz	Wide Band	1.2 dBi 1.5 dBi 3.3 dBi 3.4 dBi 3.5 dBi 3.6 dBi 3.8 dBi	IP67

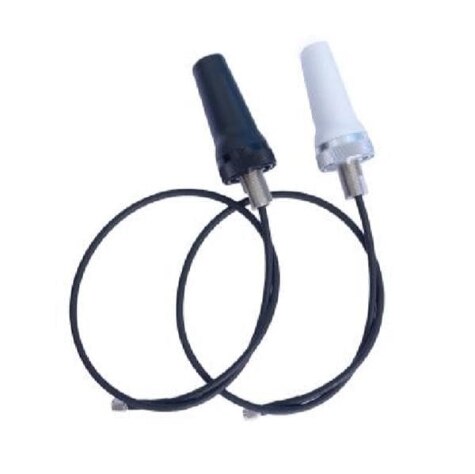

TE Connectivity AMP Connectors HCF69273WN-60A	1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 761 MHz 859 MHz 920 MHz	Cable - 608mm	10 W	Dome	2	2.6	80 mm	3.15 in	General Purpose	8	Panel Mount	1.88 GHz 1.99 GHz 2.17 GHz 2.5 GHz 2.7 GHz 824 MHz 894 MHz 960 MHz	1.69 GHz 1.85 GHz 1.92 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz 880 MHz	Wide Band	1 dBi 1.2 dBi 2.8 dBi 3.1 dBi 3.3 dBi 3.4 dBi	IP67
TE Connectivity AMP Connectors HCF69273WN-60A	1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 761 MHz 859 MHz 920 MHz	Cable - 608mm	10 W	Dome	2	2.6	80 mm	3.15 in	General Purpose	8	Panel Mount	1.88 GHz 1.99 GHz 2.17 GHz 2.5 GHz 2.7 GHz 824 MHz 894 MHz 960 MHz	1.69 GHz 1.85 GHz 1.92 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz 880 MHz	Wide Band	1 dBi 1.2 dBi 2.8 dBi 3.1 dBi 3.3 dBi 3.4 dBi	IP67
TE Connectivity AMP Connectors HCF69273BN-60A	1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 761 MHz 859 MHz 920 MHz	Cable - 608mm	10 W	Dome	2	2.6	80 mm	3.15 in	General Purpose	8	Panel Mount	2.7 GHz 960 MHz	1.69 GHz 698 MHz	Wide Band	1.2 dBi 1.5 dBi 3.3 dBi 3.4 dBi 3.5 dBi 3.6 dBi 3.8 dBi	IP67
