BBUP Series

Ferrite Beads 30Ohms RDC=0.015Ohms 4500mA

Manufacturer: Pulse Electronics

Catalog

Ferrite Beads 30Ohms RDC=0.015Ohms 4500mA

Catalog

Ferrite Beads 30Ohms RDC=0.015Ohms 4500mA

Part	Height (Max) [Max] [z]	Height (Max)	Impedance @ Frequency	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max) [Max]	Filter Type	Mounting Type	Number of Lines	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [z]	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max)
Pulse Electronics BBUP00160805121Y00	0.026 in	0.65 mm	120 Ohms	25 mOhm	-55 C	125 °C	3 A	Power Line	Surface Mount	1	1608 Metric	0603	0.031 in	1.6 mm	0.8 mm	0.063 "
Pulse Electronics BBUP00321611221Y00			220 Ohms	20 mOhm	-55 C	125 °C		Power Line	Surface Mount	1		1206 (3216 Metric)	0.063 "	3.2 mm		0.126 "	1.6 mm	0.051 in	1.3 mm

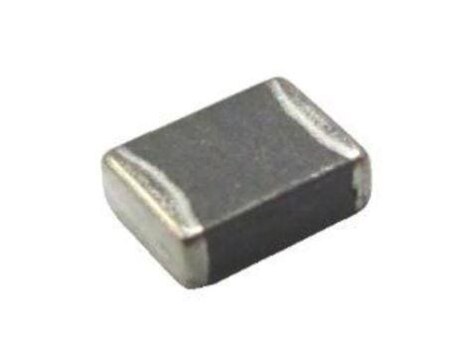

Pulse Electronics BBUP00160808300Y00			30 Ohms	15 mOhm	-55 C	125 °C			Surface Mount	1	1608 Metric	0603	0.031 in	1.6 mm	0.8 mm	0.063 "			0.95 mm	0.037 in
Pulse Electronics BBUP00201209300Y00	0.043 in		30 Ohms		-55 C	125 °C	6 A		Surface Mount	1		0805	0.049 "	2 mm		0.079 in	1.25 mm		1.1 mm		12 mOhm
Pulse Electronics BBUP00160805331Y00	0.026 in	0.65 mm	330 Ohms		-55 C	125 °C	1.5 A		Surface Mount	1	1608 Metric	0603	0.031 in	1.6 mm	0.8 mm	0.063 "					70 mOhm
