8477 Series
Manufacturer: Belden Inc.
Beta
⌘K

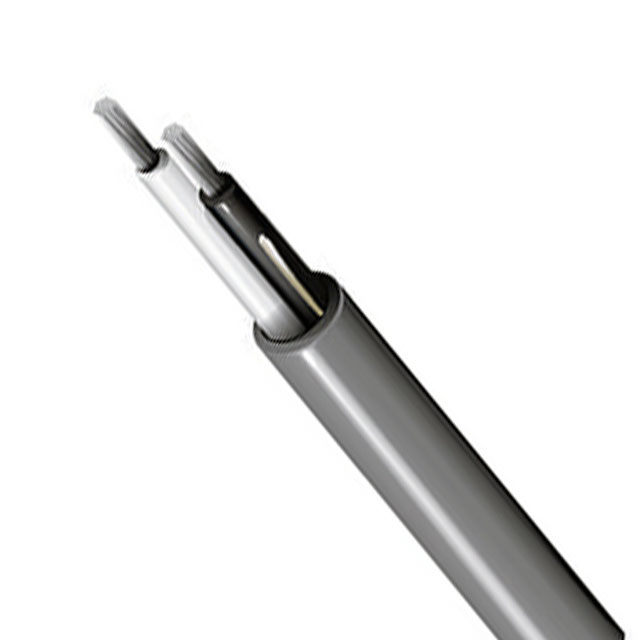

CABLE 2COND 12AWG CHROME
| Part | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Cable Type | Conductor Insulation | Ratings | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Poly-Vinyl Chloride (PVC) | 30 AWG | 65 | 2 | 0.386 in | 9.8 mm | Chrome | -20 ░C | 90 °C | 12 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 2587 | Copper Tinned | 0.035 in | 0.889 mm | 152.4 m | 500 ft | Audio Control Instrumentation |
Belden Inc. | Poly-Vinyl Chloride (PVC) | 30 AWG | 65 | 2 | 0.386 in | 9.8 mm | Chrome | -20 ░C | 90 °C | 12 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 2587 | Copper Tinned | 0.035 in | 0.889 mm | 152.4 m | 500 ft | Audio Control Instrumentation |
Belden Inc. | Poly-Vinyl Chloride (PVC) | 30 AWG | 65 | 2 | 0.386 in | 9.8 mm | Chrome | -20 ░C | 90 °C | 12 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 2587 | Copper Tinned | 0.035 in | 0.889 mm | 304.8 m | 1000 ft | Audio Control Instrumentation |
