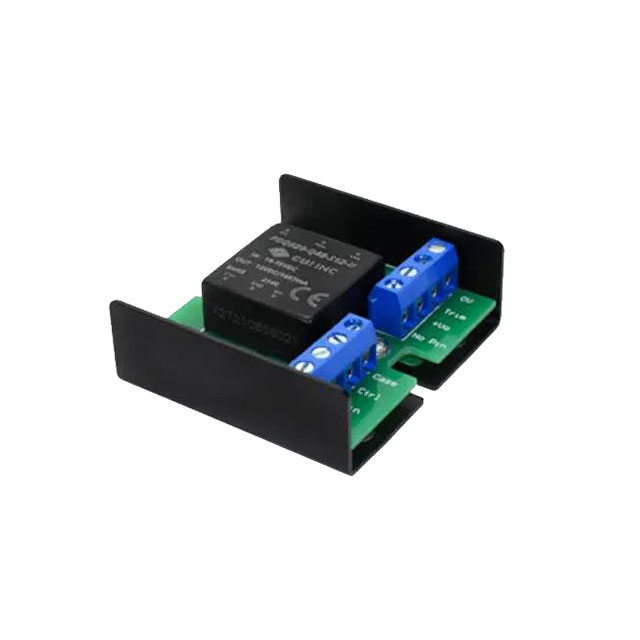

PDQE20-U Series
Manufacturer: CUI Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - RACK MOUNT THE FACTORY IS CURRENTLY NOT ACCEPTING ORDERS FOR THIS PRODUCT.
| Part | Current - Output (Max) | Current - Output (Max) | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Approval Agency | Mounting Type | Voltage - Output 2 | Number of Outputs | Type | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Efficiency | Power (Watts) | Voltage - Output 1 | Voltage - Input (Min) [Min] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 833 mA | 833 mA | 1.5 kV | 19 mm | 2.17 " | 0.75 " | 55 mm | 2.06 in | 52.3 mm | CE | Chassis Mount | -12 V | 2 | Enclosed | 62368-1 | 105 C | -40 °C | 36 V | 90 % | 20 W | 12 V | 9 V | ITE (Commercial) |
CUI Inc. | 833 mA | 833 mA | 1.5 kV | 19 mm | 2.17 " | 0.75 " | 55 mm | 2.06 in | 52.3 mm | CE | Chassis Mount | -12 V | 2 | Enclosed | 62368-1 | 105 C | -40 °C | 75 V | 90 % | 20 W | 12 V | 18 V | ITE (Commercial) |
