HSCDAND Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 100PSIG 0.19" 12BIT 8DIP

Part	Package / Case	Package / Case	Supplier Device Package	Pressure Type	Output	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Output Type	Accuracy	Mounting Type	Applications	Port Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions HSCDAND100PGSA3	0.524 " 13.3 mm	8-DIP	8-DIP	Vented Gauge	12 b	689.48 kPa	100 PSI	3.6 V	3 V	PC Pin	SPI	0.25 %	Through Hole	Board Mount	Barbed	Amplified Output Temperature Compensated	85 °C	-20 C	4.93 mm	0.19 "	250 PSI	1723.69 kPa
Honeywell Sensing and Productivity Solutions HSCDAND015PASA3	0.524 " 13.3 mm	8-DIP	8-DIP		12 b			3.6 V	3 V	PC Pin	SPI	0.25 %	Through Hole	Board Mount	Barbed	Amplified Output Temperature Compensated	85 °C	-20 C	4.93 mm	0.19 "	30 PSI	206.84 kPa	15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions HSCDAND001PGSA3	0.524 " 13.3 mm	8-DIP	8-DIP	Vented Gauge	12 b	6.89 kPa	1 PSI	3.6 V	3 V	PC Pin	SPI	0.25 %	Through Hole	Board Mount	Barbed	Amplified Output Temperature Compensated	85 °C	-20 C	4.93 mm	0.19 "	10 PSI	68.95 kPa

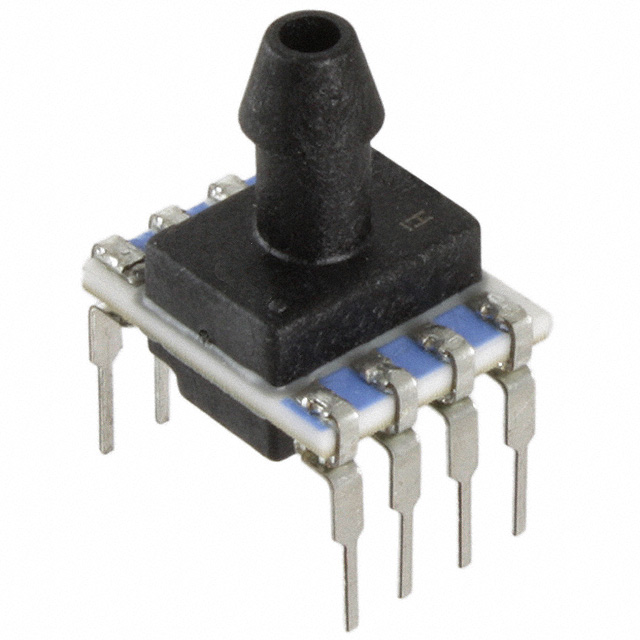

Honeywell Sensing and Productivity Solutions HSCDAND001BASA3	0.524 " 13.3 mm	8-DIP	8-DIP		12 b	100 kPa	14.5 PSI	3.6 V	3 V	PC Pin	SPI	0.25 %	Through Hole	Board Mount	Barbed	Amplified Output Temperature Compensated	85 °C	-20 C	4.93 mm	0.19 "	29.01 PSI	200 kPa
Honeywell Sensing and Productivity Solutions HSCDAND600MG2A3	0.524 " 13.3 mm	8-DIP	8-DIP	Vented Gauge	12 b	60 kPa	8.7 PSI	3.6 V	3 V	PC Pin	I2C	0.25 %	Through Hole	Board Mount	Barbed	Amplified Output Temperature Compensated	85 °C	-20 C	4.93 mm	0.19 "	29.01 PSI	200 kPa
Honeywell Sensing and Productivity Solutions HSCDAND005PGSA3	0.524 " 13.3 mm	8-DIP	8-DIP	Vented Gauge	12 b	34.47 kPa	5 PSI	3.6 V	3 V	PC Pin	SPI	0.25 %	Through Hole	Board Mount	Barbed	Amplified Output Temperature Compensated	85 °C	-20 C	4.93 mm	0.19 "	30 PSI	206.84 kPa
Honeywell Sensing and Productivity Solutions HSCDAND015PDSA3	0.524 " 13.3 mm	8-DIP	8-DIP	Differential	12 b	103.42 kPa	15 PSI	3.6 V	3 V	PC Pin	SPI	0.25 %	Through Hole	Board Mount	Barbed	Amplified Output Temperature Compensated	85 °C	-20 C	4.93 mm	0.19 "					±30PSI	±206.84kPa
Honeywell Sensing and Productivity Solutions HSCDAND001PG2A3	0.524 " 13.3 mm	8-DIP	8-DIP	Vented Gauge	12 b	6.89 kPa	1 PSI	3.6 V	3 V	PC Pin	I2C	0.25 %	Through Hole	Board Mount	Barbed	Amplified Output Temperature Compensated	85 °C	-20 C	4.93 mm	0.19 "	10 PSI	68.95 kPa
Honeywell Sensing and Productivity Solutions HSCDAND015PGSA3	0.524 " 13.3 mm	8-DIP	8-DIP	Vented Gauge	12 b			3.6 V	3 V	PC Pin	SPI	0.25 %	Through Hole	Board Mount	Barbed	Amplified Output Temperature Compensated	85 °C	-20 C	4.93 mm	0.19 "	30 PSI	206.84 kPa	15 PSI	103.42 kPa
