3114-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

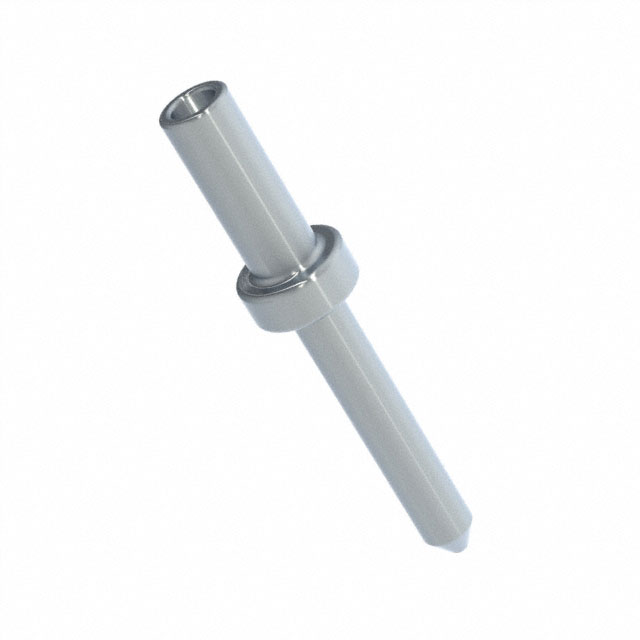

CONN PC PIN CIRC .025DIA GOLD
| Part | Contact Material | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Terminal Style | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Flange Diameter | Flange Diameter | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Length - Above Flange | Length - Above Flange [x] | Insulation | Contact Finish | Board Thickness | Board Thickness | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | Swage | 2.08 mm | 0.082 " | Through Hole | Single End | 0.64 mm | 0.025 in | 0.05 in | 1.27 mm | 20 µin | 0.51 µm | 6.4 mm | 0.252 in | 3.81 mm | 0.15 in | Non-Insulated | Gold | 1.57 mm | 0.062 " | PC Pin | 0.89 mm | 0.035 in |
 Mill-Max Manufacturing Corp. | Brass Alloy | Swage | 2.08 mm | 0.082 " | Through Hole | Single End | 0.64 mm | 0.025 in | 0.05 in | 1.27 mm | 50 µin | 1.27 µm | 6.4 mm | 0.252 in | 3.81 mm | 0.15 in | Non-Insulated | Gold | 1.57 mm | 0.062 " | PC Pin | 0.89 mm | 0.035 in |
 Mill-Max Manufacturing Corp. | Brass Alloy | Swage | 2.08 mm | 0.082 " | Through Hole | Single End | 0.64 mm | 0.025 in | 0.05 in | 1.27 mm | 200 Áin | 5.08 Ám | 6.4 mm | 0.252 in | 3.81 mm | 0.15 in | Non-Insulated | Tin | 1.57 mm | 0.062 " | PC Pin | 0.89 mm | 0.035 in |
Mill-Max Manufacturing Corp. | Brass Alloy | Swage | 2.08 mm | 0.082 " | Through Hole | Single End | 0.64 mm | 0.025 in | 0.05 in | 1.27 mm | 200 Áin | 5.08 Ám | 6.4 mm | 0.252 in | 3.81 mm | 0.15 in | Non-Insulated | Tin-Lead | 1.57 mm | 0.062 " | PC Pin | 0.89 mm | 0.035 in |
