NSCSGNN Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

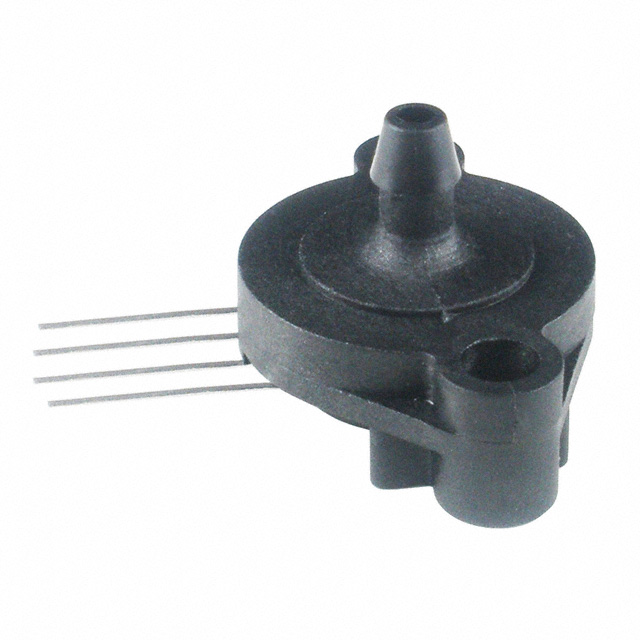

SENSOR 100PSIG 0.19" .086V 4SIP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Operating Pressure | Operating Pressure | Termination Style | Accuracy | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Applications | Port Style | Pressure Type | Output [Min] | Output [Max] | Output Type | Maximum Pressure | Maximum Pressure | Port Size | Port Size | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 85 °C | -40 C | 4-SIP | 4-SIP Side Port | 689.48 kPa | 100 PSI | PC Pin | 0.25 % | Through Hole | 12 V | 1.5 V | Board Mount | Barbed | Vented Gauge | 0 mV | 86 mV | Wheatstone Bridge | 250 PSI | 1723.69 kPa | Male Tube | 4.78 mm | 0.19 in |
