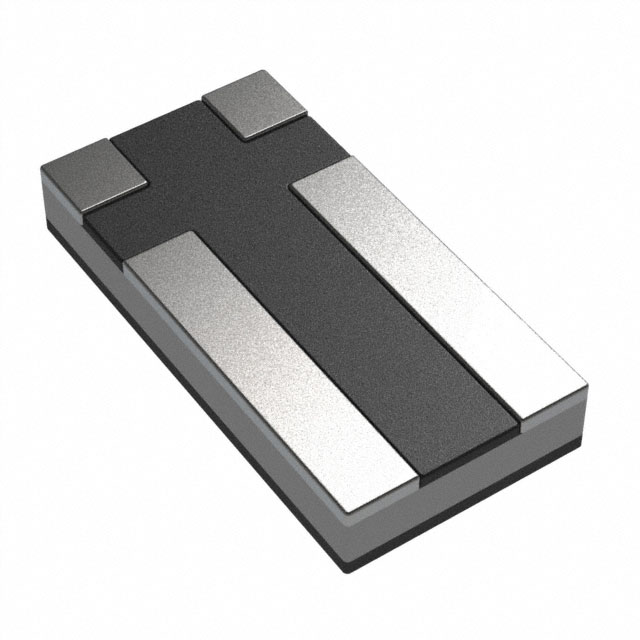

RL1632T4F Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
RES 0.002 OHM 1% 1W WIDE 1206
| Part | Tolerance | Supplier Device Package | Number of Terminations | Package / Case | Features | Height - Seated (Max) [Max] | Height - Seated (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Resistance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Composition | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | 1 % | 0612 | 4 | 0612 Wide 1206 (3216 Metric) | Current Sense | 0.031 in | 0.8 mm | -55 C | 150 °C | 100 ppm/°C | 2 mOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 W | Metal Film | |
Delta Electronics/Cyntec | 1 % | 0612 | 4 | 0612 Wide 1206 (3216 Metric) | Current Sense | 0.031 in | 0.8 mm | -55 C | 150 °C | 100 ppm/°C | 5 mOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 W | Metal Film | |
Delta Electronics/Cyntec | 1 % | 0612 | 4 | 0612 Wide 1206 (3216 Metric) | Current Sense | 0.035 in | -55 C | 150 °C | 300 ppm/°C | 0.5 mOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 W | Metal Film | 0.9 mm | |
Delta Electronics/Cyntec | 1 % | 0612 | 4 | 0612 Wide 1206 (3216 Metric) | Current Sense | 0.031 in | 0.8 mm | -55 C | 150 °C | 100 ppm/°C | 3 mOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 W | Metal Film | |
Delta Electronics/Cyntec | 1 % | 0612 | 4 | 0612 Wide 1206 (3216 Metric) | Current Sense | 0.035 in | -55 C | 150 °C | 300 ppm/°C | 750 µOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 W | Metal Film | 0.9 mm | |
Delta Electronics/Cyntec | 1 % | 0612 | 4 | 0612 Wide 1206 (3216 Metric) | Current Sense | 0.035 in | -55 C | 150 °C | 150 ppm/°C | 1 mOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 W | Metal Film | 0.9 mm | |
Delta Electronics/Cyntec | 1 % | 0612 | 4 | 0612 Wide 1206 (3216 Metric) | Current Sense | 0.031 in | 0.8 mm | -55 C | 150 °C | 100 ppm/°C | 4 mOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 W | Metal Film | |
Delta Electronics/Cyntec | 1 % | 0612 | 4 | 0612 Wide 1206 (3216 Metric) | Current Sense | 0.031 in | 0.8 mm | -55 C | 150 °C | 200 ppm/°C | 10 mOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 W | Metal Film |
