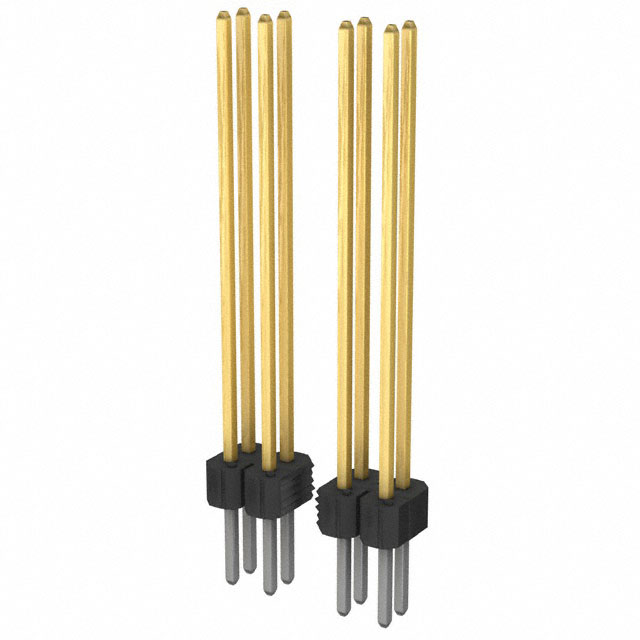

87344 Series

Catalog

CONN HEADER VERT 12POS 2.54MM

Part	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Mounting Type	Number of Positions	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Rows	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Type	Connector Type	Contact Finish - Post	Termination	Insulation Color	Contact Finish - Mating

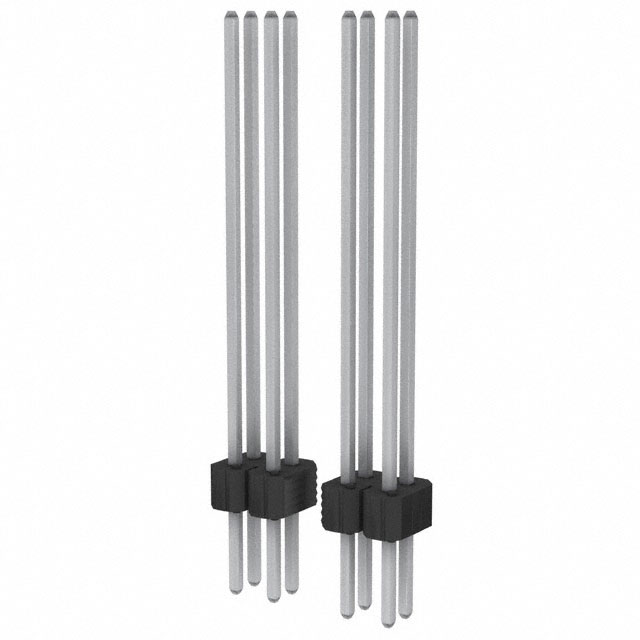

Amphenol ICC (FCI) 87344-412HLF	UL94 V-0	1.375 in	34.93 mm	Through Hole	12	All	1.056 in	26.82 mm	0.1 in	2.54 mm	2	Push-Pull	2.54 mm	0.1 in	2.54 çm	100 çin	Square	Phosphor Bronze	Unshrouded	0.219 in	5.56 mm	0.1 in	2.54 mm	Male Pin	Header	Tin	Solder	Black
Amphenol ICC (FCI) 87344-272H	UL94 V-0	1.375 in	34.93 mm	Through Hole	72	All	1.056 in	26.82 mm	0.1 in	2.54 mm	2	Push-Pull	2.54 mm	0.1 in	0.38 µm	15 µin	Square	Phosphor Bronze	Unshrouded	0.219 in	5.56 mm	0.1 in	2.54 mm	Male Pin	Header		Solder	Black	Gold or Gold GXT™
Amphenol ICC (FCI) 87344-272HLF	UL94 V-0	1.375 in	34.93 mm	Through Hole	72	All	1.056 in	26.82 mm	0.1 in	2.54 mm	2	Push-Pull	2.54 mm	0.1 in	0.38 µm	15 µin	Square	Phosphor Bronze	Unshrouded	0.219 in	5.56 mm	0.1 in	2.54 mm	Male Pin	Header		Solder	Black	Gold or Gold GXT™
Amphenol ICC (FCI) 87344-112HLF	UL94 V-0	1.375 in	34.93 mm	Through Hole	12	All	1.056 in	26.82 mm	0.1 in	2.54 mm	2	Push-Pull	2.54 mm	0.1 in	0.76 Ám	30 Áin	Square	Phosphor Bronze	Unshrouded	0.219 in	5.56 mm	0.1 in	2.54 mm	Male Pin	Header		Solder	Black	Gold or Gold GXT™
