10-487 Series
Manufacturer: Coax Connectors Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

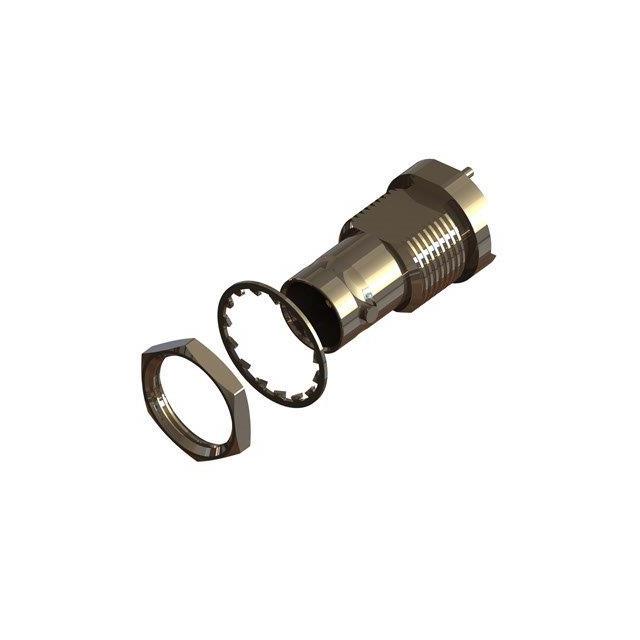

BNC VERTICAL BULKHEAD JACK 75OHM
| Part | Body Finish | Body Material | Mating Cycles | Center Contact Plating | Operating Temperature (Max) | Operating Temperature (Min) | Dielectric Material | Number of Ports | Shield Termination | Connector Style | Fastening Type | Center Contact Material | Mounting Feature | Mounting Type | Contact Termination | Frequency - Max | Ingress Protection Description | Ingress Protection IP Rating | Impedance | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coax Connectors Ltd | Nickel | Brass | 500 cycles | Gold | 155 °C | -55 °C | Polytetrafluoroethylene (PTFE) | 1 | Solder | BNC | Bayonet Lock | Phosphor Bronze | Bulkhead Front Side Nut | Panel Mount Through Hole | Solder | 6000 MHz | Dust Tight Water Resistant | IP64 | 75 Ohm | Female Socket Jack | Silver |
