IPS Series
Electrical Enclosures Die Cast Aluminum Enclosure (10.8 X 6.8 X 2.6 In)
Manufacturer: BUD INDUSTRIES
Catalog
Electrical Enclosures Die Cast Aluminum Enclosure (10.8 X 6.8 X 2.6 In)
Beta
⌘K
Electrical Enclosures Die Cast Aluminum Enclosure (10.8 X 6.8 X 2.6 In)
Electrical Enclosures Die Cast Aluminum Enclosure (10.8 X 6.8 X 2.6 In)
Electrical Enclosures Die Cast Aluminum Enclosure (10.8 X 6.8 X 2.6 In)
| Part | Thickness | Thickness | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Features | Ratings | Area (L x W) | Area (L x W) | Container Type | Height | Height | Design | Material | Color | Height [z] | Height [z] | Size / Dimension [y] | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BUD INDUSTRIES | 0.098 in | 2.49 mm | 3.787 in | 96.19 mm | 3.787 in | 96.19 mm | PCB Supports Sealed | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 4 NEMA 4X | 14.2 in² | 92 cm˛ | Box | 45 mm | 1.772 in | Cover Included | Aluminum Metal | Natural | |||||
 BUD INDUSTRIES | 0.098 in | 2.49 mm | 6.378 " | 162 mm | 6.378 in | 162 mm | PCB Supports Sealed | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 4 NEMA 4X | 40.7 in² | 263 cm² | Box | Cover Included | Aluminum Metal | Natural | 55 mm | 2.165 in | |||||

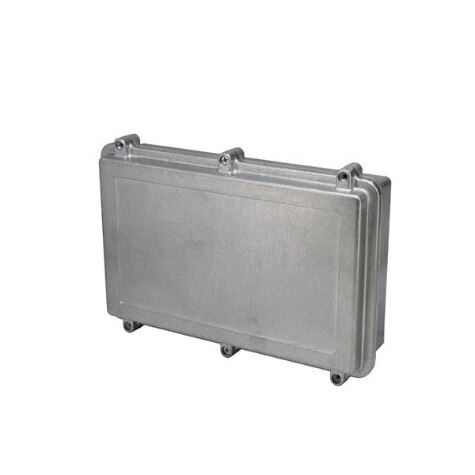

 BUD INDUSTRIES | 0.098 in | 2.49 mm | 10.787 in | 273.99 mm | 6.811 " | PCB Supports Sealed | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 4 NEMA 4X | 73.5 in² | 474 cm² | Box | Cover Included | Aluminum Metal | Natural | 66 mm | 2.598 in | 172.99 mm | |||||
 BUD INDUSTRIES | 0.098 in | 2.49 mm | 5.906 in | 150.01 mm | 3.937 " | 100 mm | PCB Supports Sealed | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 4 NEMA 4X | 23.2 in² | 150 cm² | Box | Cover Included | Aluminum Metal | Natural | 50 mm | 1.969 in | 1.1 lbs | 499 g |
