LP4OA1 Series

Manufacturer: E-Switch

Catalog

PUSHBUTTON SWITCHES DPDT RT AGL RED LED

Part	Mechanical Life	Actuator Type	Actuator Marking	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Illumination Type, Color	Illumination Voltage (Nominal)	Type	Mounting Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Color - Actuator/Cap

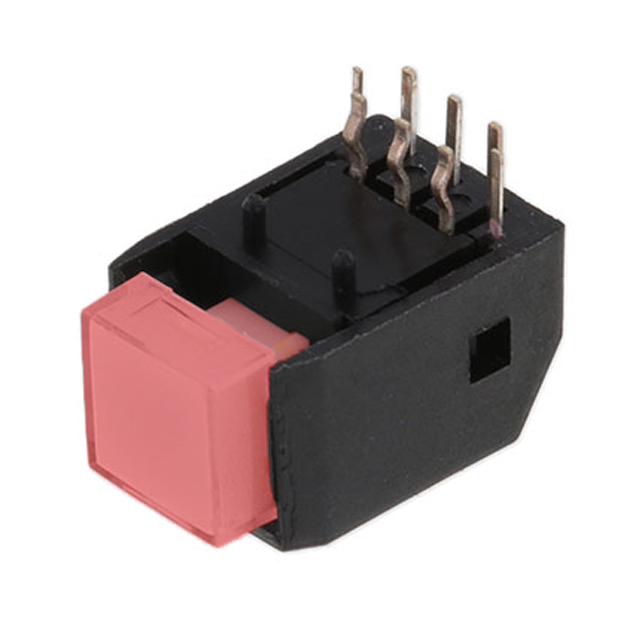

E-Switch LP4OA1RBATR	50000 Cycles	Button Square	No Marking	30 V	PC Pin	100 mA	LED Red	2.2 VDC	Illuminated Standard	Right Angle Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Clear

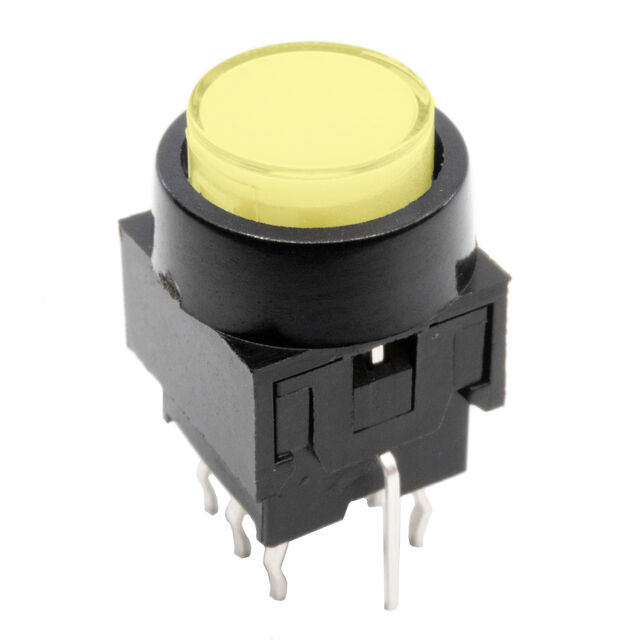

E-Switch LP4OA1PBBTY	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	LED Yellow	2.2 VDC	Illuminated Standard	Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Clear
E-Switch LP4OA1PBABN	50000 Cycles	Button Square	No Marking	30 V	PC Pin	100 mA			Standard	Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Blue

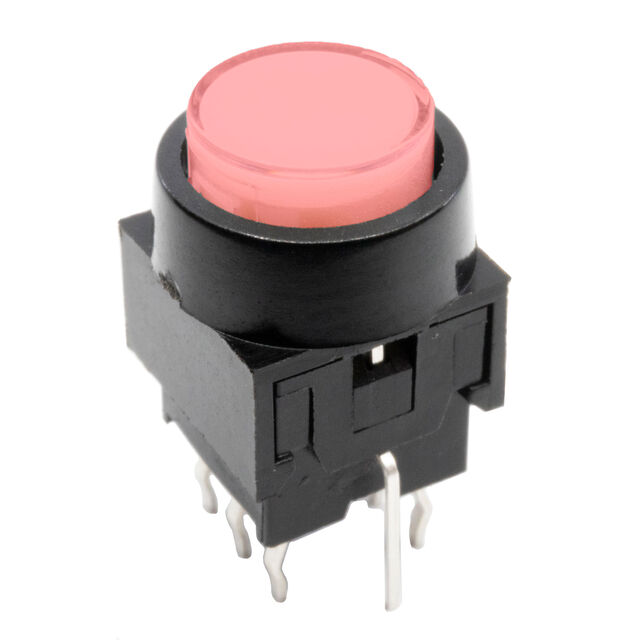

E-Switch LP4OA1PBBTR	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	LED Red	2.2 VDC	Illuminated Standard	Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Clear

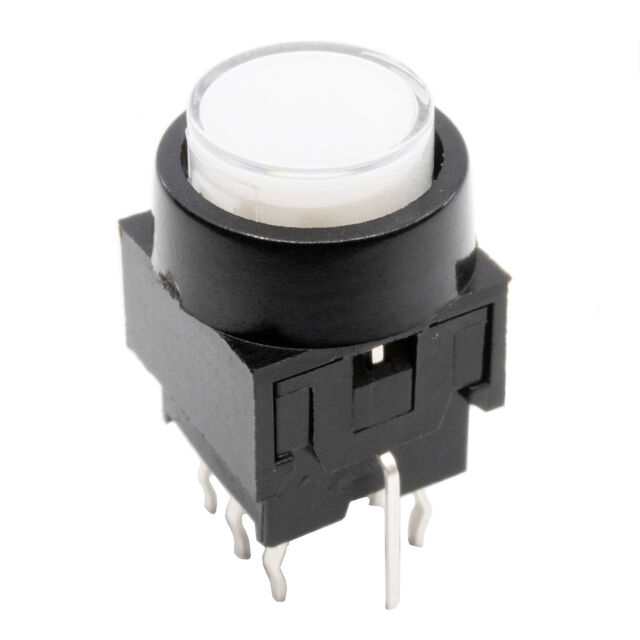

E-Switch LP4OA1PBBTW	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	LED White	3.7 VDC	Illuminated Standard	Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Clear
E-Switch LP4OA1RBATB	50000 Cycles	Button Square	No Marking	30 V	PC Pin	100 mA	Blue LED	3.5 VDC	Illuminated Standard	Right Angle Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Clear
E-Switch LP4OA1PBBTG	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	Green LED	2.3 VDC	Illuminated Standard	Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Clear
E-Switch LP4OA1PBCTG	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	Green LED	2.3 VDC	Illuminated Standard	Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Clear

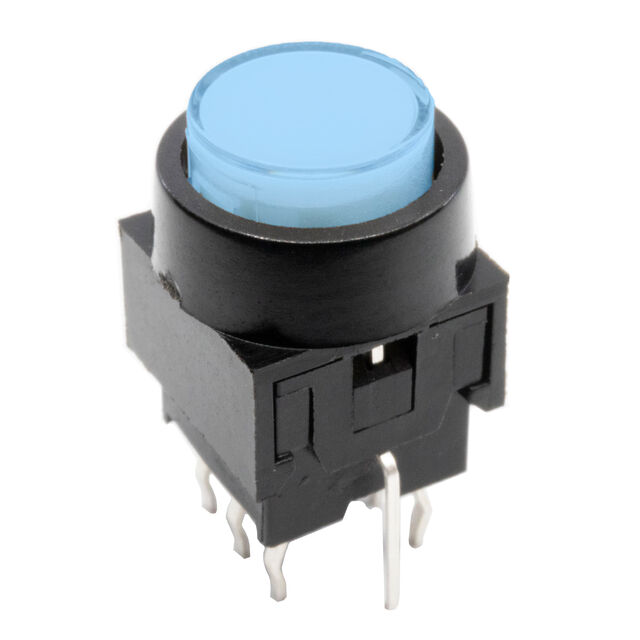

E-Switch LP4OA1PBBTB	50000 Cycles	Button Round	No Marking	30 V	PC Pin	100 mA	Blue LED	3.5 VDC	Illuminated Standard	Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Clear
E-Switch LP4OA1RBATW	50000 Cycles	Button Square	No Marking	30 V	PC Pin	100 mA	LED White	3.7 VDC	Illuminated Standard	Right Angle Through Hole	On-Mom	-20 ░C	70 °C	DPDT	Clear
