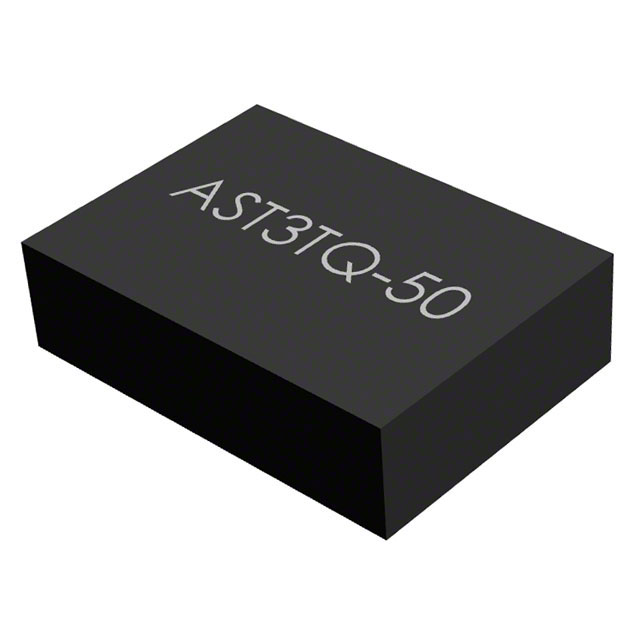

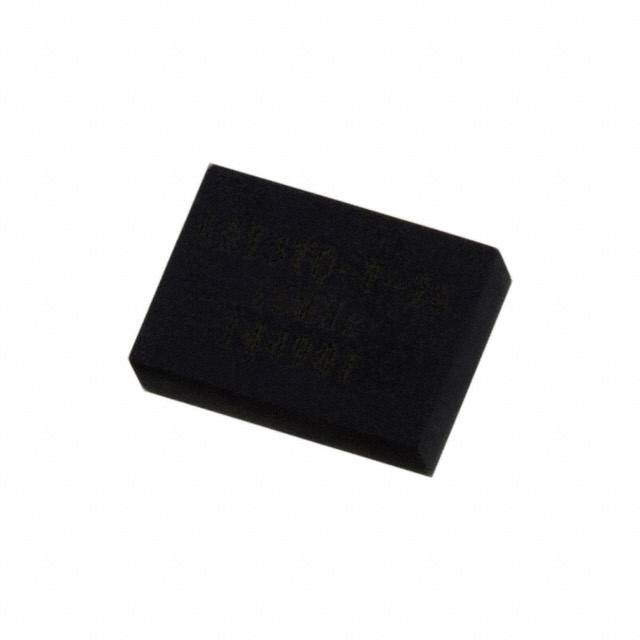

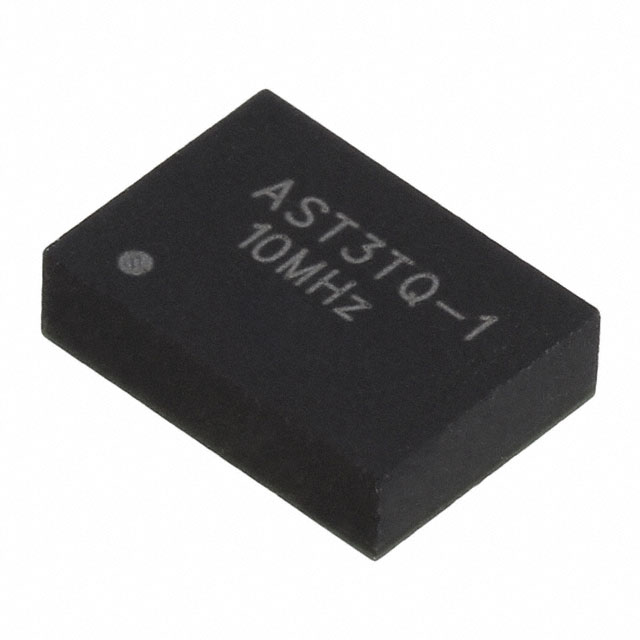

AST3TQ Series

Catalog

TCXO OSCILLATORS XTAL OSC TCXO 30.7200MHZ LVCMOS

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Frequency Stability	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Output	Type	Voltage - Supply	Frequency	Base Resonator [custom]	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]
Abracon LLC AST3TQ-T-30.720MHZ-50-C	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	50 ppb	0.079 in	2 mm	LVCMOS	TCXO	3.3 V	30.72 MHz	Crystal	7 mA	85 °C	-40 C
Abracon LLC AST3TQ-V-25.000MHZ-28	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	280 ppb	0.079 in	2 mm	LVCMOS	VCTCXO	3.3 V	25 MHz	Crystal	7 mA	85 °C	-40 C
Abracon LLC AST3TQ-V-30.720MHZ-28-T5	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	280 ppb	0.079 in	2 mm	LVCMOS	VCTCXO	3.3 V	30.72 MHz	Crystal	7 mA	85 °C	-40 C
Abracon LLC AST3TQ-T-16.384MHZ-28	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	280 ppb	0.079 in	2 mm	LVCMOS	TCXO	3.3 V	16.384 MHz	Crystal	7 mA	85 °C	-40 C
Abracon LLC AST3TQ-T-26.000MHZ-28	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	280 ppb	0.079 in	2 mm	LVCMOS	TCXO	3.3 V	26 MHz	Crystal	7 mA	85 °C	-40 C
Abracon LLC AST3TQ-T-16.384MHZ-50-C-T2	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	50 ppb	0.079 in	2 mm	LVCMOS	TCXO	3.3 V	16.384 MHz	Crystal	7 mA	85 °C	-40 C
Abracon LLC AST3TQ-40.000MHZ-1	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	100 ppb	0.079 in	2 mm	LVCMOS	TCXO		40 MHz	Crystal	7 mA	85 °C	-40 C	3.135 V	3.465 V
Abracon LLC AST3TQ-T-19.200MHZ-28	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	280 ppb	0.079 in	2 mm	LVCMOS	TCXO	3.3 V	19.2 MHz	Crystal	7 mA	85 °C	-40 C
Abracon LLC AST3TQ-T-20.000MHZ-28-T5	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	280 ppb	0.079 in	2 mm	LVCMOS	TCXO	3.3 V	20 MHz	Crystal	7 mA	85 °C	-40 C
Abracon LLC AST3TQ-V-16.320MHZ-28	5 mm	7 mm	0.197 "	0.276 "	Surface Mount	4-SMD No Lead	280 ppb	0.079 in	2 mm	LVCMOS	VCTCXO	3.3 V	16.32 MHz	Crystal	7 mA	85 °C	-40 C
