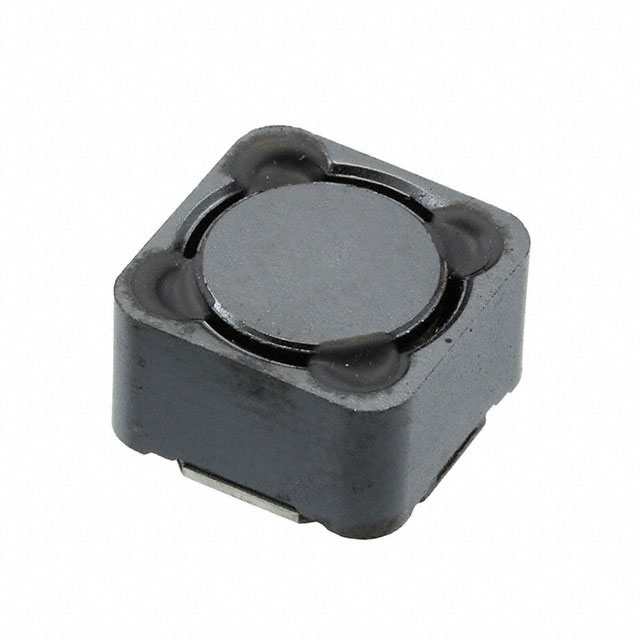

SRR1280A Series

Catalog

INDUCTOR POWER SHIELDED WIREWOUND 10UH 20% 1KHZ 24Q-FACTOR FERRITE 6A 0.0195OHM DCR AUTOMOTIVE AEC-Q200 T/R

Part	DC Resistance (DCR) [Max]	Shielding	Material - Core	Mounting Type	Frequency - Self Resonant	Package / Case	Q @ Freq [custom]	Q @ Freq [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Current - Saturation (Isat)	Current Rating (Amps)	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Tolerance	Q @ Freq	DC Resistance (DCR)	Q @ Freq [custom]
Bourns Inc. SRR1280A-100M	19.5 mOhm	Shielded	Ferrite	Surface Mount	17 MHz	Nonstandard	2.52 MHz	24	1280	125 °C	-40 C	AEC-Q200	6.3 A	6 A	1 kHz	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	10 µH	20 %
Bourns Inc. SRR1280A-270M		Shielded	Ferrite	Surface Mount	10 MHz	Nonstandard			1280	125 °C	-40 C	AEC-Q200	3.7 A	3.9 A	1 kHz	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	27 µH	20 %	2.52 MHz 26
Bourns Inc. SRR1280A-390M		Shielded	Ferrite	Surface Mount	8.5 MHz	Nonstandard	2.52 MHz	24	1280	125 °C	-40 C	AEC-Q200	3.1 A	3.2 A	1 kHz	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	39 µH	20 %		70 mOhm
Bourns Inc. SRR1280A-8R2Y	20.5 mOhm	Shielded	Ferrite	Surface Mount	20 MHz	Nonstandard	100 kHz		1280	125 °C	-40 C	AEC-Q200	6.8 A	6.2 Amps	100 kHz	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	8.2 µH	30 %			22
Bourns Inc. SRR1280A-120M		Shielded	Ferrite	Surface Mount	15 MHz	Nonstandard			1280	125 °C	-40 C	AEC-Q200	6 A	5.6 A	1 kHz	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	12 µH	20 %	2.52 MHz 26	28 mOhm
Bourns Inc. SRR1280A-150M	28.5 mOhm	Shielded	Ferrite	Surface Mount	13 MHz	Nonstandard			1280	125 °C	-40 C	AEC-Q200	5 A	5.2 A	1 kHz	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	15 µH	20 %	2.52 MHz 26
Bourns Inc. SRR1280A-680M	120 mOhm	Shielded	Ferrite	Surface Mount	6.5 MHz	Nonstandard			1280	125 °C	-40 C	AEC-Q200	2.3 A	2.4 A	1 kHz	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	68 µH	20 %	2.52 MHz 20
Bourns Inc. SRR1280A-181K	300 mOhm	Shielded	Ferrite	Surface Mount	4 MHz	Nonstandard	796 kHz	24	1280	125 °C	-40 C	AEC-Q200	1.88 A	1.75 A	1 kHz	8 mm	0.315 in	12.5 mm	0.492 "	12.5 mm	0.492 "	180 µH	10 %
