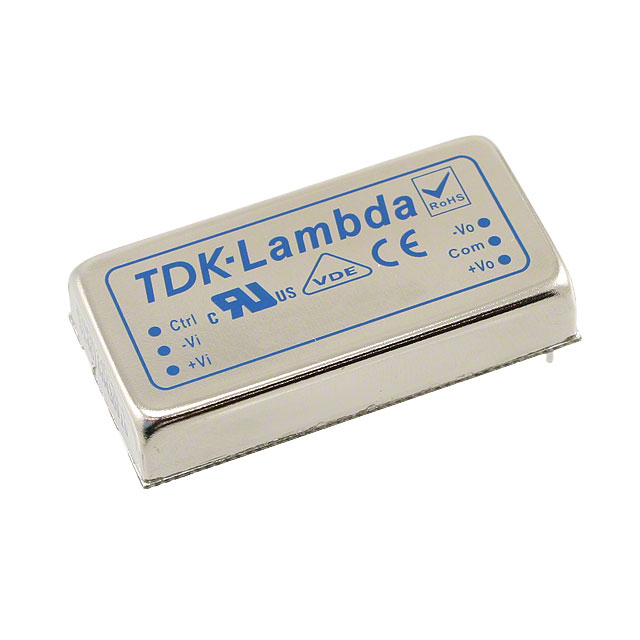

PXD30 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, DIP, 30 W, 2 OUTPUT, 15 V

Part	Power (Watts)	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension	Type	Voltage - Output 2	Voltage - Isolation	Applications	Efficiency	Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max)	Current - Output (Max) [Max]
TDK Corporation PXD30-48WD15	30 Watts	2	Through Hole	18 V	OCP OVP Remote On/Off SCP	85 °C	-40 C	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	-15 V	1.6 kV	ITE (Commercial)	88 %	75 V	15 V	1 A
TDK Corporation PXD30-12S12	30 Watts	1	Through Hole	9 V	OCP OVP Remote On/Off SCP			6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module		1.6 kV	ITE (Commercial)		18 V	12 V		2.5 A
TDK Corporation PXD30-24D15	30 Watts	2	Through Hole	18 V	OCP OVP Remote On/Off SCP			6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	-15 V	1.6 kV	ITE (Commercial)	87 %	36 V	15 V	1 A
TDK Corporation PXD30-48WS05	30 Watts	1	Through Hole	18 V	OCP OVP Remote On/Off SCP	85 °C	-40 C	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module		1.6 kV	ITE (Commercial)	88 %	75 V	5 V		6 A
TDK Corporation PXD30-12S05	30 Watts	1	Through Hole	9 V	OCP OVP Remote On/Off SCP			6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module		1.6 kV	ITE (Commercial)		18 V	5 V		6 A
TDK Corporation PXD30-12D15	30 Watts	2	Through Hole	9 V	OCP OVP Remote On/Off SCP			6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	-15 V	1.6 kV	ITE (Commercial)		18 V	15 V	1 A
TDK Corporation PXD30-48D05	30 Watts	2	Through Hole	36 V	OCP OVP Remote On/Off SCP			6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	-5 V	1.6 kV	ITE (Commercial)	88 %	75 V	5 V	3 A
TDK Corporation PXD30-24D05	30 Watts	2	Through Hole	18 V	OCP OVP Remote On/Off SCP			6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	-5 V	1.6 kV	ITE (Commercial)	88 %	36 V	5 V	3 A
TDK Corporation PXD30-48D12	30 Watts	2	Through Hole	36 V	OCP OVP Remote On/Off SCP			6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	-12 V	1.6 kV	ITE (Commercial)	88 %	75 V	12 V	1.25 A

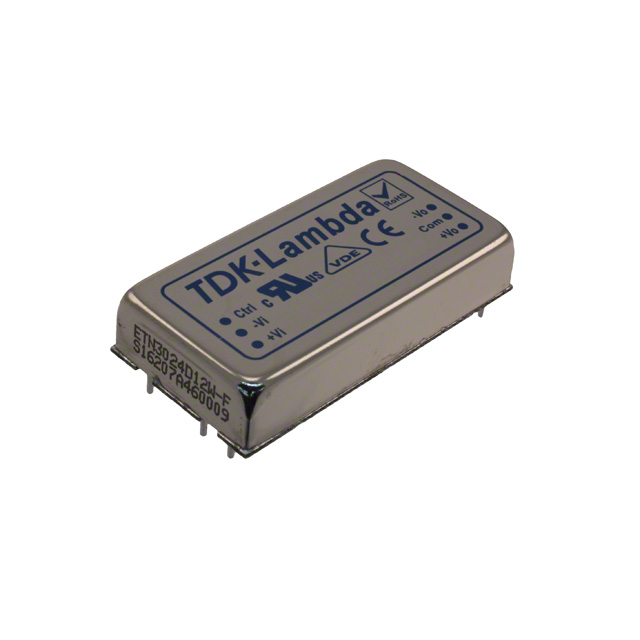

TDK Corporation PXD30-24WD12	30 Watts	2	Through Hole	9 V	OCP OVP Remote On/Off SCP	85 °C	-40 C	6-DIP Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	-12 V	1.6 kV	ITE (Commercial)	87 %	36 V	12 V	1.25 A
