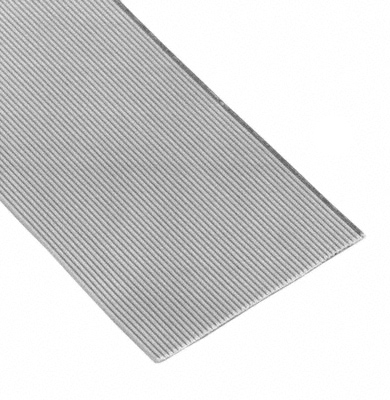

3756 Series

Manufacturer: 3M (TC)

Catalog

CBL RIBN 20COND 0.025 GRAY 50'

Part	Ribbon Thickness	Ribbon Thickness	Length	Length	Jacket (Insulation) Material	Voltage	Ribbon Width [custom]	Ribbon Width [custom]	Insulation Resistance	First Conductor Mark	Length [x]	Length [x]	Pitch [x]	Pitch [x]	Number of Conductors	Jacket Color	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Shielding	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ribbon Width	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]	Features

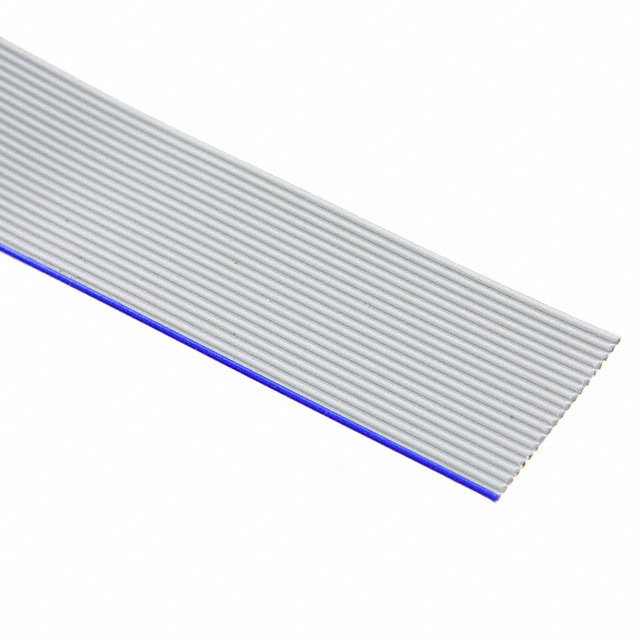

3M (TC) 3756/20 100	0.64 mm	0.025 in	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Thermoplastic Elastomer (TPE)	150 V	0.5 "	12.7 mm	10 GOhm	Blue	100 ft	30.48 m	0.64 mm	0.025 in	20	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable
3M (TC) 3756/100 100	0.64 mm	0.025 in	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	10 ft 100 ft	3.05 m 30.48 m	0.64 mm	0.025 in	100	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable	63.5 mm	2.5 "
3M (TC) 3756/68 100	0.64 mm	0.025 in	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	10 ft	3.05 m	0.64 mm	0.025 in	68	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable			1.7 in	43.18 mm
3M (TC) 3756/26 100	0.64 mm	0.025 in	1 ft 25 ft	7.62 m 304.8 mm	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	10 ft 100 ft	3.05 m 30.48 m	0.64 mm	0.025 in	26	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable	16.51 mm	0.65 in
3M (TC) 3756/34	0.64 mm	0.025 in	300 ft	91.44 m	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue			0.64 mm	0.025 in	34	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable	21.59 mm	0.85 in
3M (TC) 3756/30 100	0.64 mm	0.025 in			Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	100 ft	30.48 m	0.64 mm	0.025 in	30	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable	19.05 mm	0.75 "
3M (TC) 3756/60 100	0.64 mm	0.025 in	25 ft	7.62 m	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	10 ft 100 ft	3.05 m 30.48 m	0.64 mm	0.025 in	60	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable			1.5 in	38.1 mm

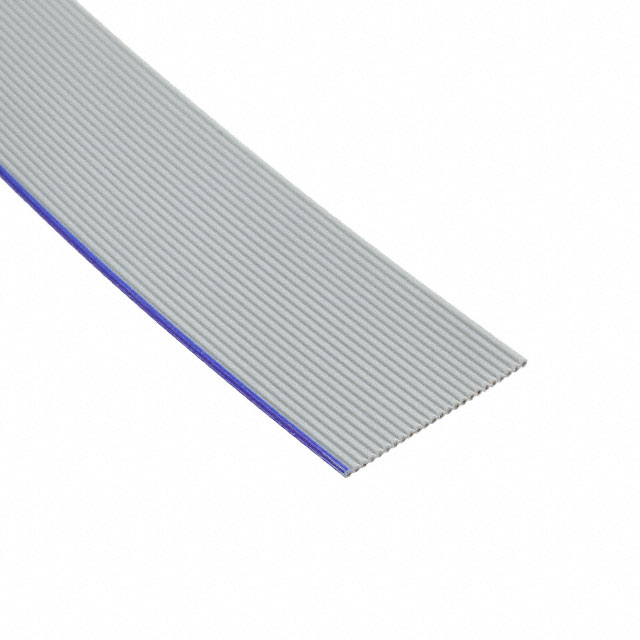

3M (TC) 3756/24	0.64 mm	0.025 in			Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	100 ft	30.48 m	0.64 mm	0.025 in	24	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable

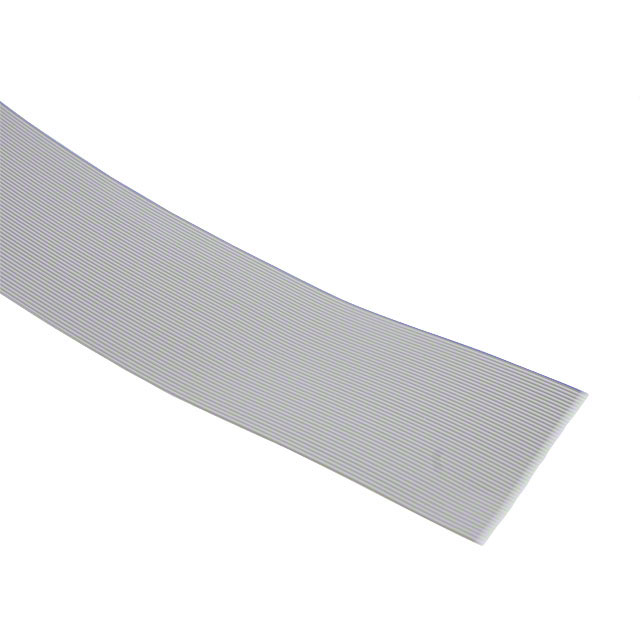

3M (TC) 3756/50 300SF	0.64 mm	0.025 in	300 ft	91.44 m	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue			0.64 mm	0.025 in	50	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable					1.25 "	31.75 mm	Splice Free
3M (TC) 3756/68SF	0.64 mm	0.025 in			Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	100 ft	30.48 m	0.64 mm	0.025 in	68	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable			1.7 in	43.18 mm			Splice Free
