SM12B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

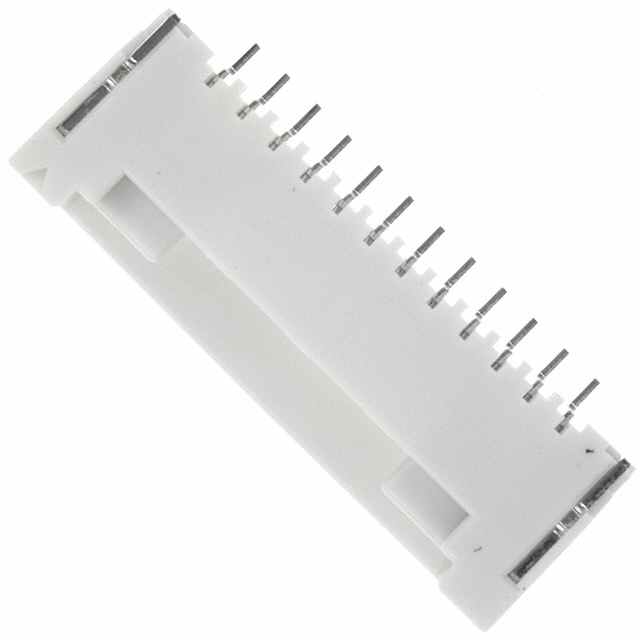

CONN HEADER SMD R/A 12POS 1.5MM
| Part | Connector Type | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Contact Material | Contact Finish - Post | Material Flammability Rating | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Shape | Shrouding | Contact Type | Insulation Color | Termination | Style | Voltage Rating | Features | Number of Positions Loaded | Number of Positions | Insulation Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Header | 2 A | 0.228 " | 5.8 mm | Copper Alloy | Tin | UL94 V-0 | 1 | 85 °C | -25 °C | Locking Ramp | Rectangular | Shrouded - 4 Wall | Outer Shroud Contact | Natural | Solder | Board to Cable/Wire | 100 V | Solder Retention | All | 12 | Nylon Polyamide (PA) | Right Angle Surface Mount |
