90152 Series
Manufacturer: Preci-Dip
Beta
⌘K

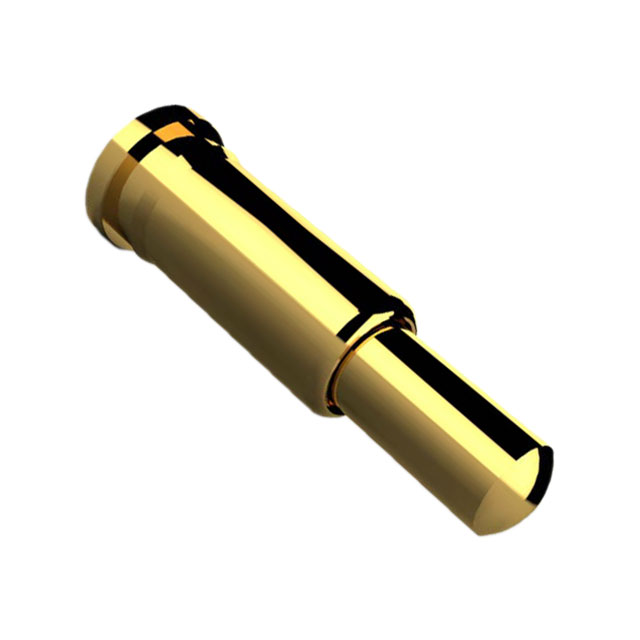

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Mounting Type | Operating Force - Initial | Current Rating (Amps) | Mating Cycles | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Pad Layout Dimension | Pad Layout Dimension | Contact Finish | Contact Material | Operating Force - Mid Compression | Minimum Working Height | Minimum Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 0.042 in | 1.07 mm | Surface Mount | 25.49 gf | 3 A | 40000 | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | 0.276 in | 7 mm | 0.072 in | 1.83 mm | Gold | Brass Alloy | 86.68 gf | 5.6 mm | 0.22 in |
