PE915 Series

Catalog

2.92MM PLUG-3.5MM PLUG MITER RA

Part	Center Contact Material	Body Material	Dielectric Material	Conversion Type	Center Contact Plating	Mounting Type	Convert From (Adapter End)	Convert From (Adapter End)	Center Gender	Convert To (Adapter End)	Impedance	Adapter Series [Min]	Adapter Series [Max]	Style	Frequency - Max [Max]	Adapter Type	Convert From (Adapter End)	Convert To (Adapter End)	Mounting Feature	Adapter Series	Convert To (Adapter End) [custom]

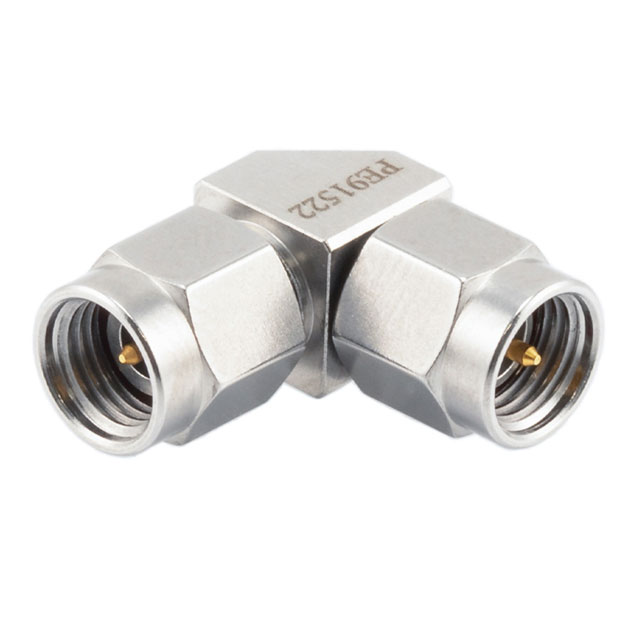

Pasternack PE91522	Beryllium Copper	Stainless Steel	Polyphenylene Ether Modified (mPPE)	Between Series	Gold	Free Hanging (In-Line) Right Angle	Plug Male Pin	2.92 mm	Male to Male	3.5mm Plug Male Pin	50 Ohms	2.92 mm	3.5 mm	Right Angle	34.5 GHz	Plug to Plug

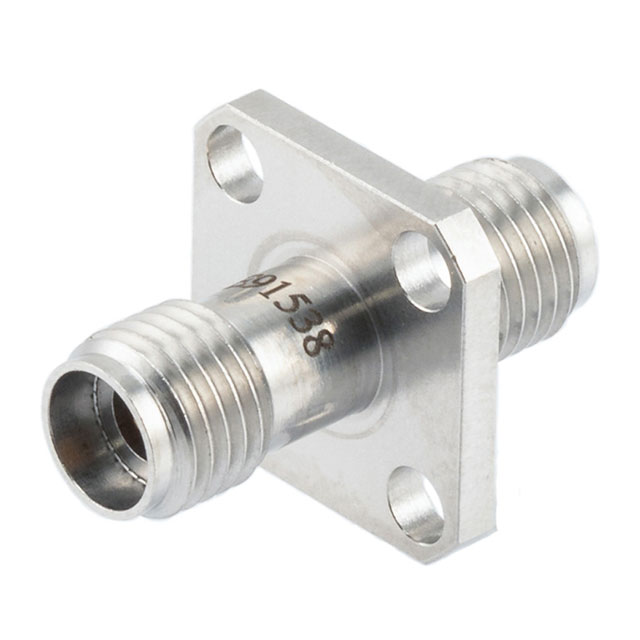

Pasternack PE91538	Beryllium Copper	Stainless Steel	Polytetrafluoroethylene (PTFE)	Same Series	Gold	Panel Mount	Jack Female Socket	2.92 mm	Female to Female	Jack Female Socket	50 Ohms	2.92 mm	2.92 mm	Straight	40 GHz	Jack to Jack	OS-2.9	2.92 mm	Flange

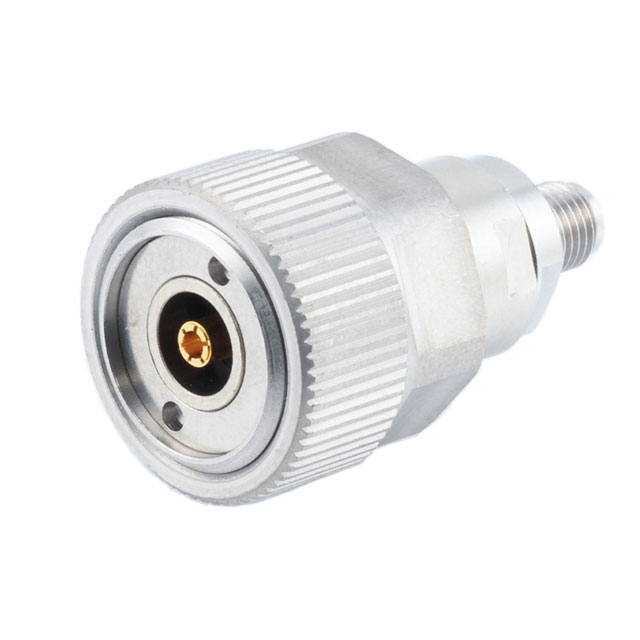

Pasternack PE91546	Beryllium Copper	Stainless Steel	Polyphenylene Ether Modified (mPPE)	Between Series	Gold	Free Hanging (In-Line)	3.5mm Jack Female Socket		Female to Non-Gendered		50 Ohms	3.5 mm	7 mm	Straight	18 GHz

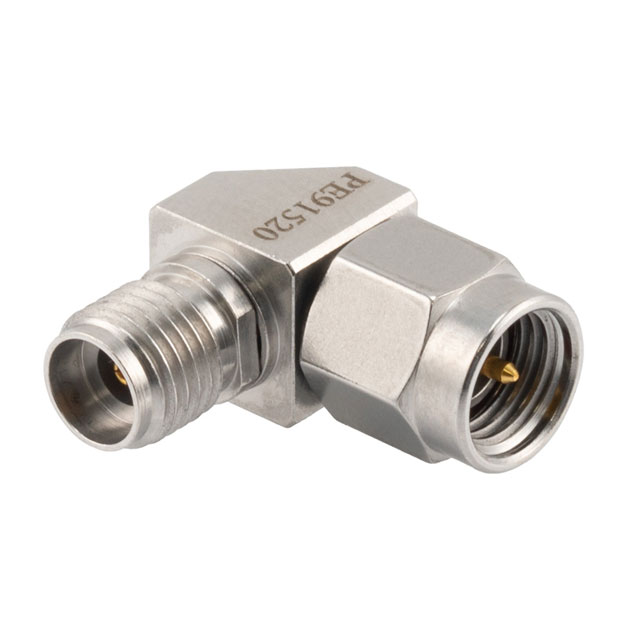

Pasternack PE91520	Beryllium Copper	Stainless Steel	Polyphenylene Ether Modified (mPPE)	Between Series	Gold	Free Hanging (In-Line) Right Angle	Jack Female Socket	2.92 mm		3.5mm Plug Male Pin	50 Ohms	2.92 mm	3.5 mm	Right Angle	34.5 GHz	Plug to Jack	OS-2.9

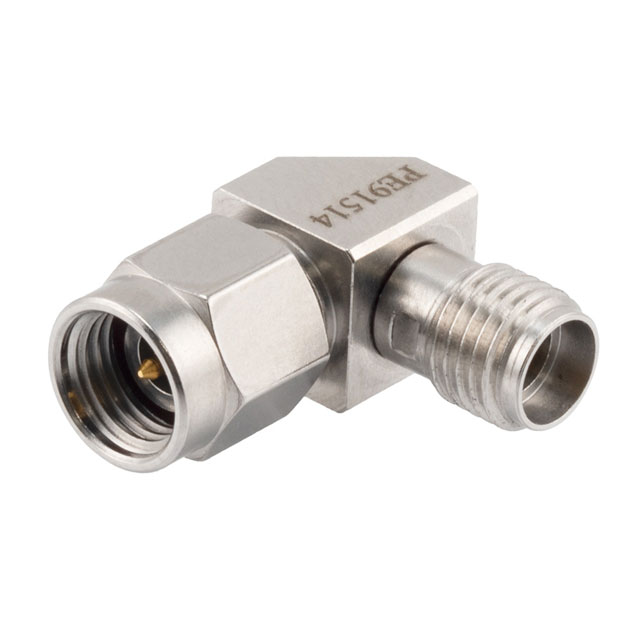

Pasternack PE91514	Beryllium Copper	Stainless Steel	Polyphenylene Ether Modified (mPPE)	Between Series	Gold	Free Hanging (In-Line) Right Angle	Plug Male Pin	2.92 mm		3.5mm Jack Female Socket	50 Ohms	2.92 mm	3.5 mm	Right Angle	34.5 GHz	Plug to Jack

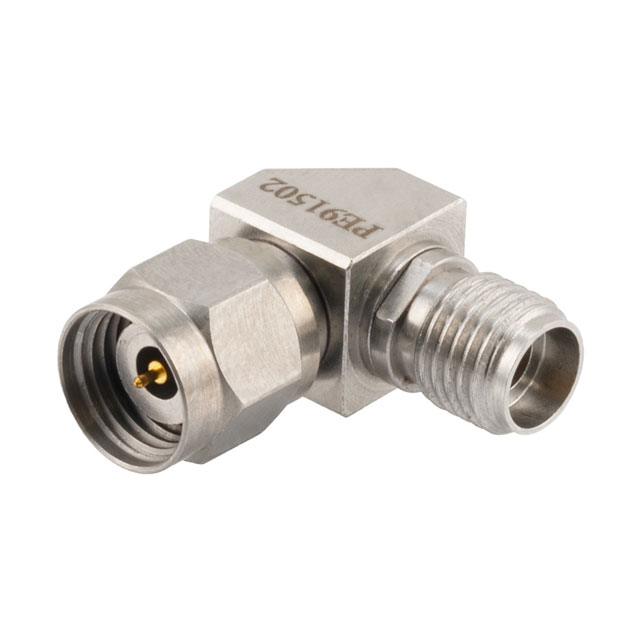

Pasternack PE91502	Beryllium Copper	Stainless Steel	Polyphenylene Ether Modified (mPPE)	Between Series	Gold	Free Hanging (In-Line) Right Angle	APC-2.4 Male Pin OS-50 Plug	2.4 mm		Jack Female Socket	50 Ohms	2.4 mm	2.92 mm	Right Angle	40 GHz	Plug to Jack		2.92 mm

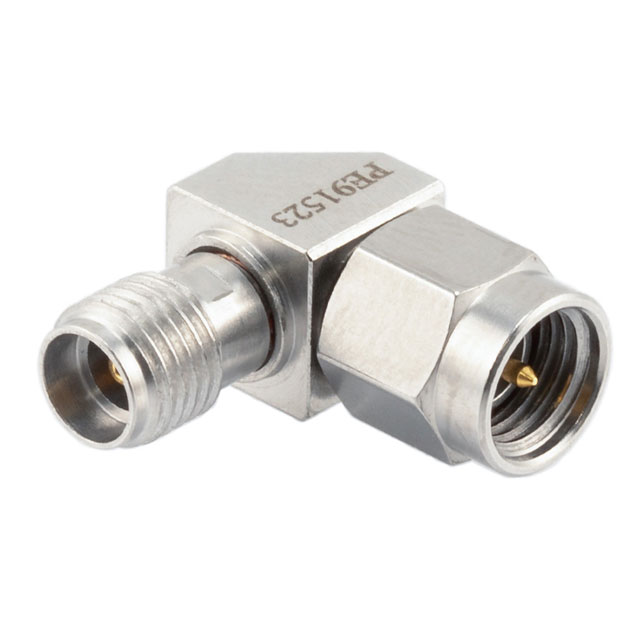

Pasternack PE91523	Beryllium Copper	Stainless Steel	Polyphenylene Ether Modified (mPPE)	Same Series	Gold	Free Hanging (In-Line) Right Angle	3.5mm Plug Male Pin			3.5mm Jack Female Socket	50 Ohms	3.5 mm	3.5 mm	Right Angle	34.5 GHz	Plug to Jack

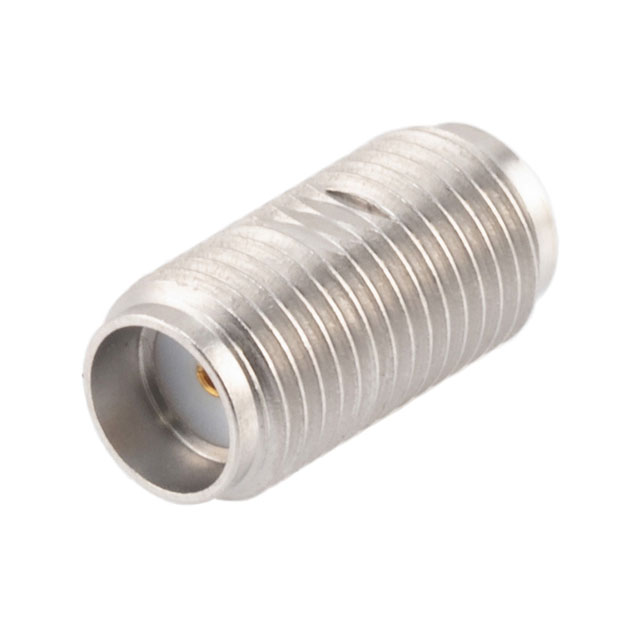

Pasternack PE91549				Same Series		Free Hanging (In-Line)	Female Socket SMA Jack		Female to Female	SMA Jack Female Socket	50 Ohms			Straight	27 GHz	Jack to Jack				SMA to SMA

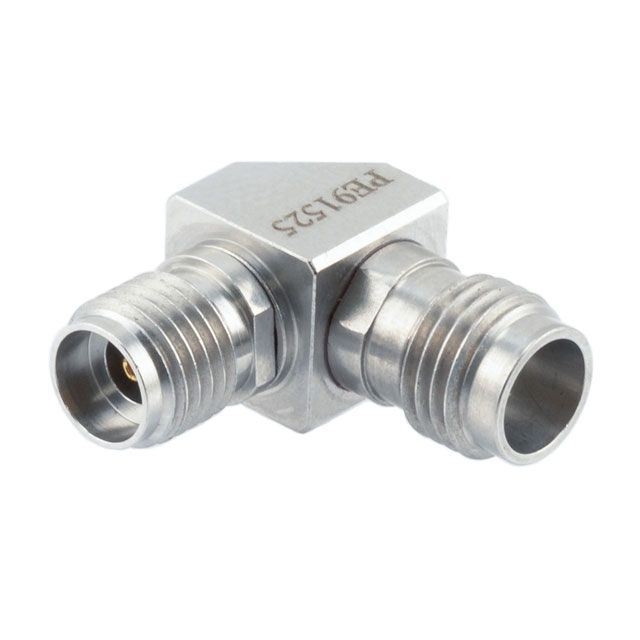

Pasternack PE91525	Beryllium Copper	Stainless Steel	Polyphenylene Ether Modified (mPPE)	Between Series	Gold	Free Hanging (In-Line) Right Angle	APC-2.4 Female Socket Jack OS-50	2.4 mm	Female to Female	Jack Female Socket	50 Ohms	2.4 mm	2.92 mm	Right Angle	40 GHz	Jack to Jack		2.92 mm

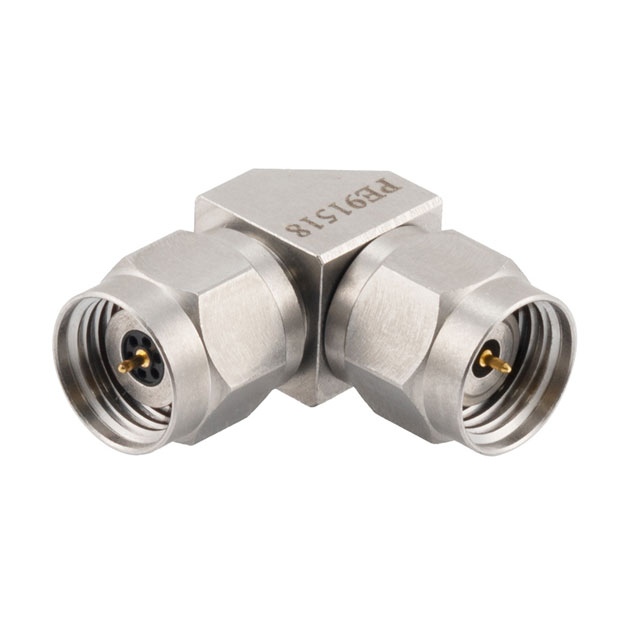

Pasternack PE91518	Beryllium Copper	Stainless Steel	Polyphenylene Ether Modified (mPPE)	Between Series	Gold	Free Hanging (In-Line) Right Angle	Plug Male Pin	1.85 mm	Male to Male		50 Ohms	1.85 mm	2.4 mm	Right Angle	50 GHz	Plug to Plug					2.4 mm
