043031 Series

Manufacturer: Molex

Catalog

CONN PIN 20-24AWG CRIMP GOLD

Part	Contact Finish Thickness	Contact Finish Thickness	Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish	Pin or Socket	Wire Gauge
Molex 0430310053	0.76 Ám	30 Áin	Power	20 AWG	24 AWG	Crimp	Gold	Pin

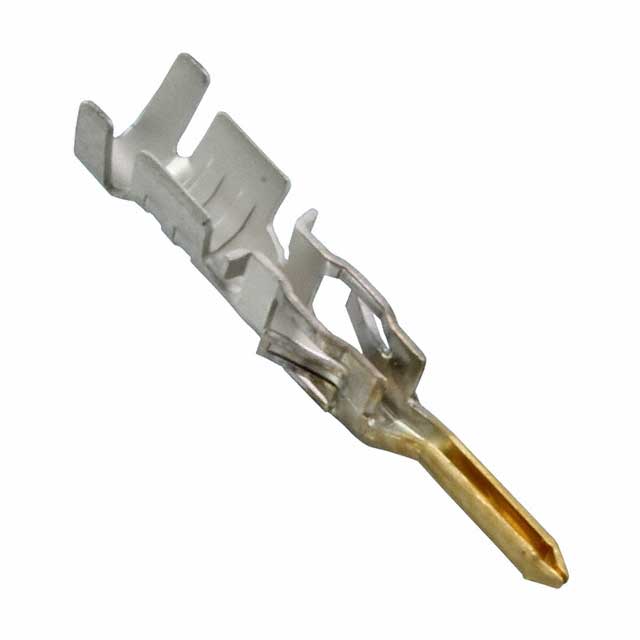

Molex 0430310002	0.38 µm	15 µin	Power	20 AWG	24 AWG	Crimp	Gold	Pin

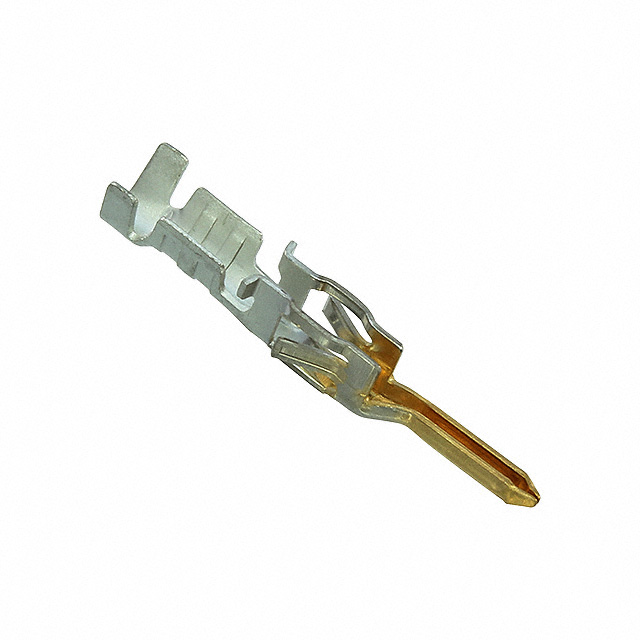

Molex 0430310011	0.38 µm	15 µin	Power	26 AWG	30 AWG	Crimp	Gold	Pin
Molex 0430310009	0.76 Ám	30 Áin	Power	20 AWG	24 AWG	Crimp	Gold	Pin
Molex 0430310003	0.76 Ám	30 Áin	Power	20 AWG	24 AWG	Crimp	Gold	Pin

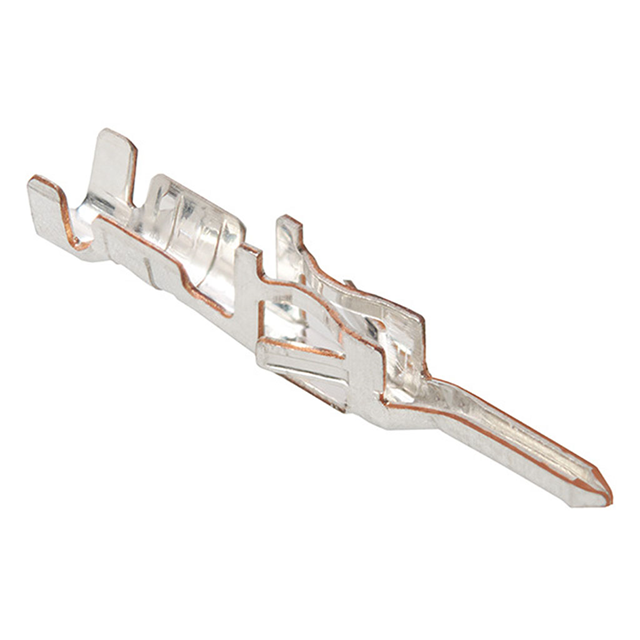

Molex 0430315004	0.38 µm	15 µin	Stamped	20 AWG	24 AWG	Crimp	Gold	Pin
Molex 0430310021	1.02 Ám	40 Áin	Power			Crimp	Tin	Pin	18 AWG

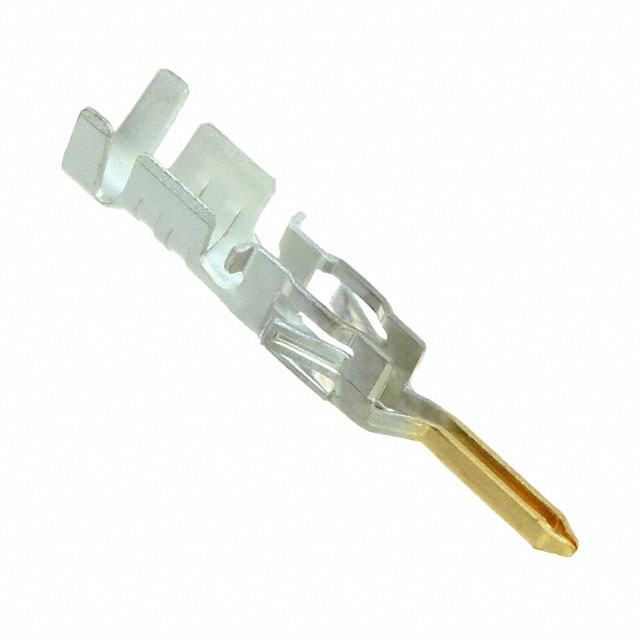

Molex 0430310008	0.38 µm	15 µin	Power	20 AWG	24 AWG	Crimp	Gold	Pin
Molex 0430315007	1 Ám	39.4 Áin	Stamped	26 AWG	30 AWG	Crimp	Tin	Pin
Molex 0430310010	1.02 Ám	40 Áin	Power	26 AWG	30 AWG	Crimp	Tin	Pin
