RB715 Series

40V, 30mA, SOT-416FL, Schottky Barrier Diode for Automotive

Catalog

40V, 30mA, SOT-416FL, Schottky Barrier Diode for Automotive

Part	Speed	Speed	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Operating Temperature - Junction [Max]	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature - Junction	Grade	Qualification

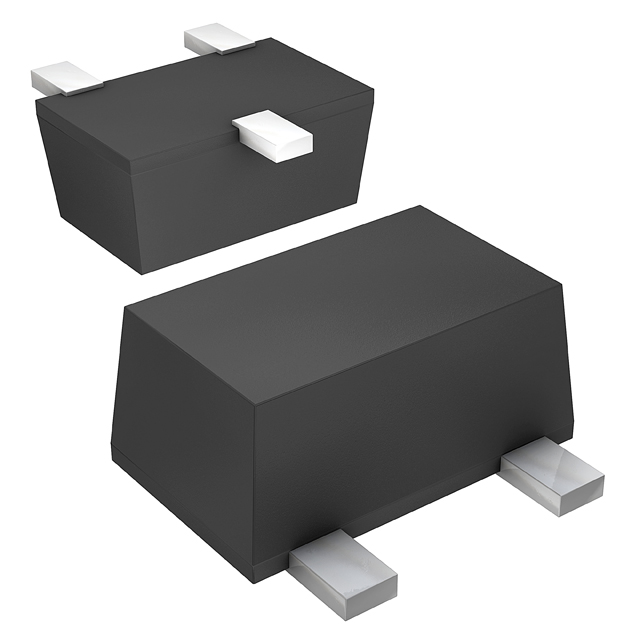

Rohm Semiconductor RB715UMTL	200 mA	Any Speed	1 Pair Common Cathode	30 mA	UMD3F	125 °C	Surface Mount	Schottky	370 mV	40 V	1 µA	SC-85
Rohm Semiconductor RB715FM-40FHT106	200 mA	Any Speed	1 Pair Common Cathode	30 mA	SOT-323		Surface Mount	Schottky	370 mV	40 V	1 µA	SC-70 SOT-323	150 ¯C	Automotive	AEC-Q101
Rohm Semiconductor RB715UMFHTL	200 mA	Any Speed	1 Pair Common Cathode	30 mA	UMD3F	125 °C	Surface Mount	Schottky	370 mV	40 V	1 µA	SC-85

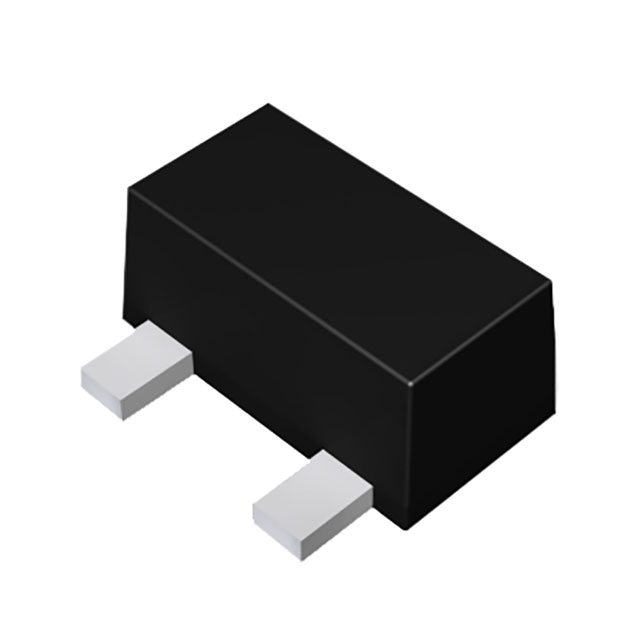

Rohm Semiconductor RB715WMFHTL	200 mA	Any Speed	1 Pair Series Connection	30 mA	EMD3F	125 °C	Surface Mount	Schottky	370 mV	40 V	1 µA	SC-89 SOT-490		Automotive	AEC-Q101

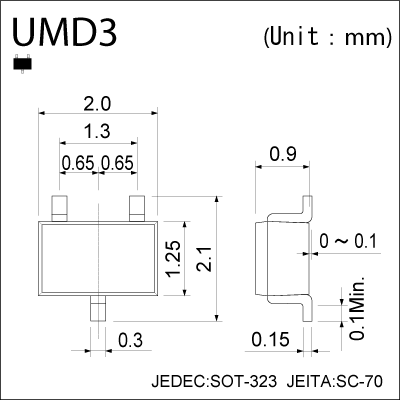

Rohm Semiconductor RB715FT106	200 mA	Any Speed	1 Pair Common Cathode	30 mA	UMD3	125 °C	Surface Mount	Schottky	370 mV	40 V	1 µA	SC-70 SOT-323
Rohm Semiconductor RB715WMTL	200 mA	Any Speed	1 Pair Common Cathode	30 mA	EMD3F	125 °C	Surface Mount	Schottky	370 mV	40 V	1 µA	SC-89 SOT-490

40V, 30mA, SOT-416FL, Schottky Barrier Diode for Automotive

ROHM's schottky barrier diodes are low VF, low IR and high ESD resistant, suitable for phone and various portable electronics.
