LPC4330 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

ARM MCU, LPC FAMILY LPC4300 SERIES MICROCONTROLLERS, ARM CORTEX-M4, 32 BIT, 204 MHZ, 256 PINS

Part	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of I/O	Core Size [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	RAM Size	Speed	Core Processor	Mounting Type	Connectivity	Data Converters [custom]	Data Converters [custom]	Program Memory Type	Package / Case	Peripherals	Data Converters

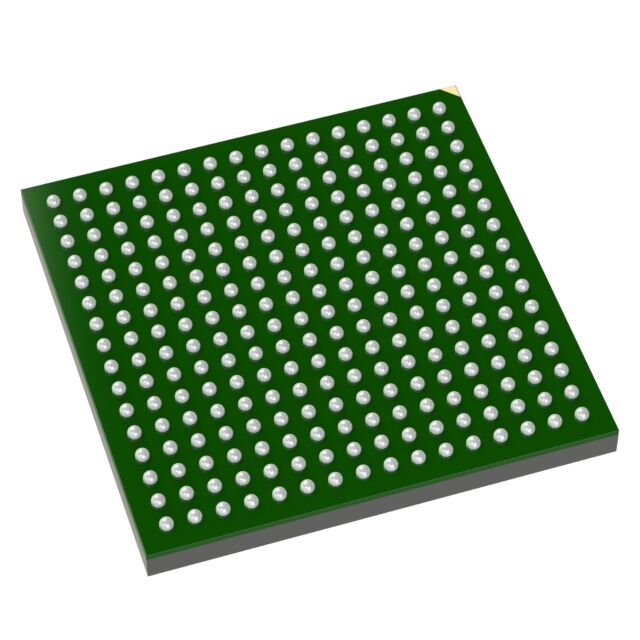

Freescale Semiconductor - NXP LPC4330FET256,551	2.2 V	3.6 V	164 I/O	32-Bit Dual-Core	256-LBGA (17x17)	85 °C	-40 °C	Internal	264 K	204 MHz	ARM® Cortex®-M4/M0	Surface Mount	CANbus EBI/EMI Ethernet I2C IrDA Microwire SD SPI SSI SSP UART/USART USB USB OTG	1 8	10 10	ROMless	256-LBGA
Freescale Semiconductor - NXP LPC4330FBD144Y	2.2 V	3.6 V	83	32-Bit Dual-Core	144-LQFP (20x20)	85 °C	-40 °C	Internal	264 K	204 MHz	ARM® Cortex®-M0 ARM® Cortex®-M4	Surface Mount	CANbus EBI/EMI Ethernet I2C IrDA Microwire SD SPI SSI SSP UART/USART USB USB OTG	1 8	10 10	ROMless	144-LQFP
Freescale Semiconductor - NXP LPC4330FBD144,551	2.2 V	3.6 V	83	32-Bit Dual-Core	144-LQFP (20x20)	85 °C	-40 °C	Internal	264 K	204 MHz	ARM® Cortex®-M4/M0	Surface Mount	CANbus EBI/EMI Ethernet I2C IrDA Microwire SD SPI SSI SSP UART/USART USB USB OTG	1 8	10 10	ROMless	144-LQFP
Freescale Semiconductor - NXP LPC4330FET100,551	2.2 V	3.6 V	49	32-Bit Dual-Core	100-TFBGA (9x9)	85 °C	-40 °C	Internal	264 K	204 MHz	ARM® Cortex®-M4/M0	Surface Mount	CANbus EBI/EMI Ethernet I2C IrDA Microwire SD SPI SSI SSP UART/USART USB USB OTG			ROMless		Brown-out Detect/Reset DMA I2S POR PWM WDT	A/D 4x10b D/A 1x10b
Freescale Semiconductor - NXP LPC4330FET180Y	2.2 V	3.6 V	118	32-Bit Dual-Core	180-TFBGA (12x12)	85 °C	-40 °C	Internal	264 K	204 MHz	ARM® Cortex®-M4/M0	Surface Mount	CANbus EBI/EMI Ethernet I2C IrDA Microwire SD SPI SSI SSP UART/USART USB USB OTG	1 8	10 10	ROMless	180-TFBGA
Freescale Semiconductor - NXP LPC4330FET100Y	2.2 V	3.6 V	49	32-Bit Dual-Core	100-TFBGA (9x9)	85 °C	-40 °C	Internal	264 K	204 MHz	ARM® Cortex®-M4/M0	Surface Mount	CANbus EBI/EMI Ethernet I2C IrDA Microwire SD SPI SSI SSP UART/USART USB USB OTG			ROMless		Brown-out Detect/Reset DMA I2S POR PWM WDT	A/D 4x10b D/A 1x10b
Freescale Semiconductor - NXP LPC4330FET180,551	2.2 V	3.6 V	118	32-Bit Dual-Core	180-TFBGA (12x12)	85 °C	-40 °C	Internal	264 K	204 MHz	ARM® Cortex®-M4/M0	Surface Mount	CANbus EBI/EMI Ethernet I2C IrDA Microwire SD SPI SSI SSP UART/USART USB USB OTG	1 8	10 10	ROMless	180-TFBGA
