MAX25210 Series

Catalog

60DB@(100HZ) 300MA FIXED POSITIVE ELECTRODE 36V TDFN-8(3X3) VOLTAGE REGULATORS - LINEAR, LOW DROP OUT (LDO) REGULATORS ROHS

Part	Package / Case	Mounting Type	PSRR	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Qualification	Output Configuration	Voltage Dropout (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Protection Features	Number of Regulators	Grade	Supplier Device Package	Control Features	Current - Output	Channels per IC	Voltage - Output	Regulator Type	Utilized IC / Part	Supplied Contents	Voltage - Input	Board Type
Analog Devices Inc./Maxim Integrated MAX25210ATAA8/V+	8-WDFN Exposed Pad	Surface Mount	60 dB	38 µA	36 V	3.3 V 5 V	AEC-Q100	Positive	0.77 V	-40 °C	125 ¯C	1.81 mOhm	Over Current Over Temperature UVLO	1	Automotive	8-TDFN (3x3)	Enable Reset Out	300 mA
Analog Devices Inc./Maxim Integrated MAX25210ATAB9/V+	8-WDFN Exposed Pad	Surface Mount	60 dB	38 µA	42 V	3.3 V 5 V	AEC-Q100	Positive	0.77 V	-40 °C	125 ¯C	1.81 mOhm	Over Current Over Temperature UVLO	1	Automotive	8-TDFN (3x3)	Enable	200 mA
Analog Devices Inc./Maxim Integrated MAX25210ATAB8/V+	8-WDFN Exposed Pad	Surface Mount	60 dB	38 µA	36 V	3.3 V 5 V	AEC-Q100	Positive	0.5 V	-40 °C	125 ¯C	1.81 mOhm	Over Current Over Temperature UVLO	1	Automotive	8-TDFN (3x3)	Enable Reset Out	200 mA
Analog Devices Inc./Maxim Integrated MAX25210ATAD8/V+	8-WDFN Exposed Pad	Surface Mount	60 dB	38 µA	36 V	3.3 V 5 V	AEC-Q100	Positive	0.13 V	-40 °C	125 ¯C	1.81 mOhm	Over Current Over Temperature UVLO	1	Automotive	8-TDFN (3x3)	Enable Reset Out	50 mA

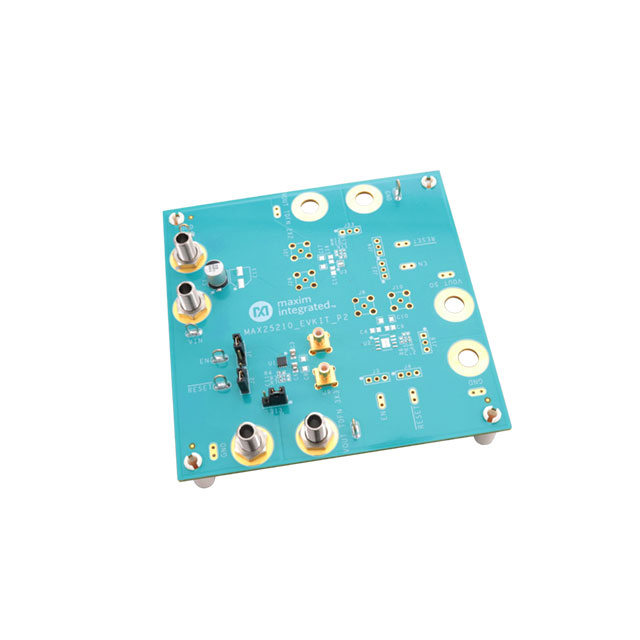

Analog Devices Inc./Maxim Integrated MAX25210EVKIT#																		300 mA	2 - Dual	3.3 V 5 V	Positive Fixed	MAX25210	Board(s)	42 V	Fully Populated
