317-064 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 64POS 0.156
| Part | Material - Insulation | Termination | Gender | Number of Positions | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Number of Rows [custom] | Color | Card Type | Pitch | Pitch | Contact Type | Read Out | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

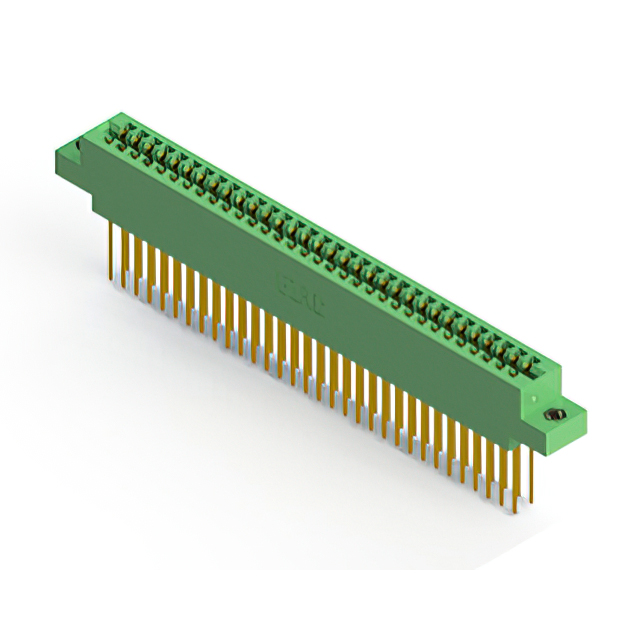

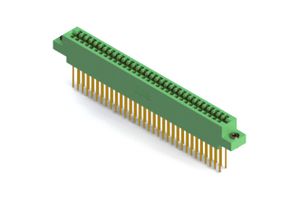

 EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | Female | 64 | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Gold | -65 ░C | 125 °C | 32 | 2 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | Female | 64 | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Gold | -65 ░C | 125 °C | 32 | 2 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||

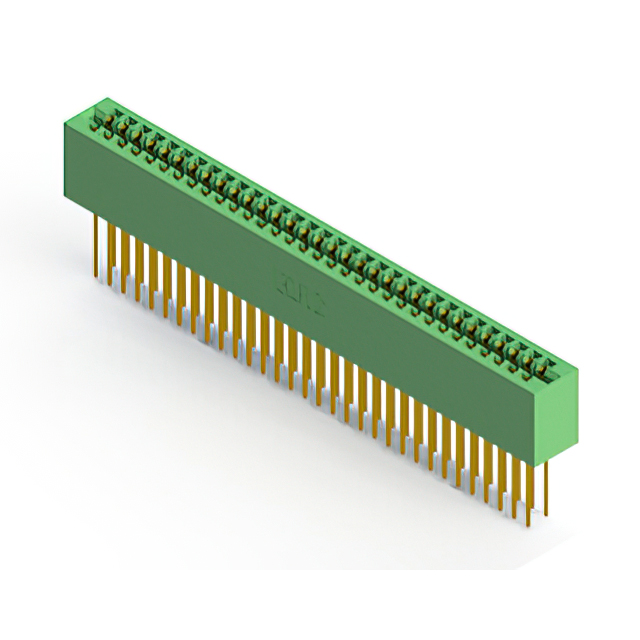

 EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | Female | 64 | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Gold | -65 ░C | 125 °C | 32 | 2 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | Female | 64 | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Gold | -65 ░C | 125 °C | 32 | 2 | Green | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Cantilever | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm |
